2DD180407C - Tamura

Description: GATE DRIVE POWER SUPPLY (+18V,-4

Download 2DD180407C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

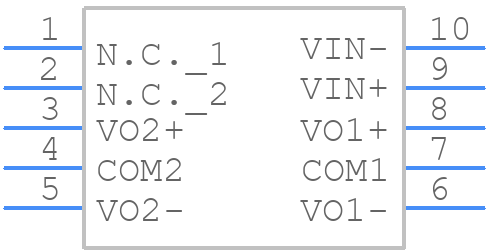

Symbol
2DD180407C - Tamura - PCB symbol
click to zoom

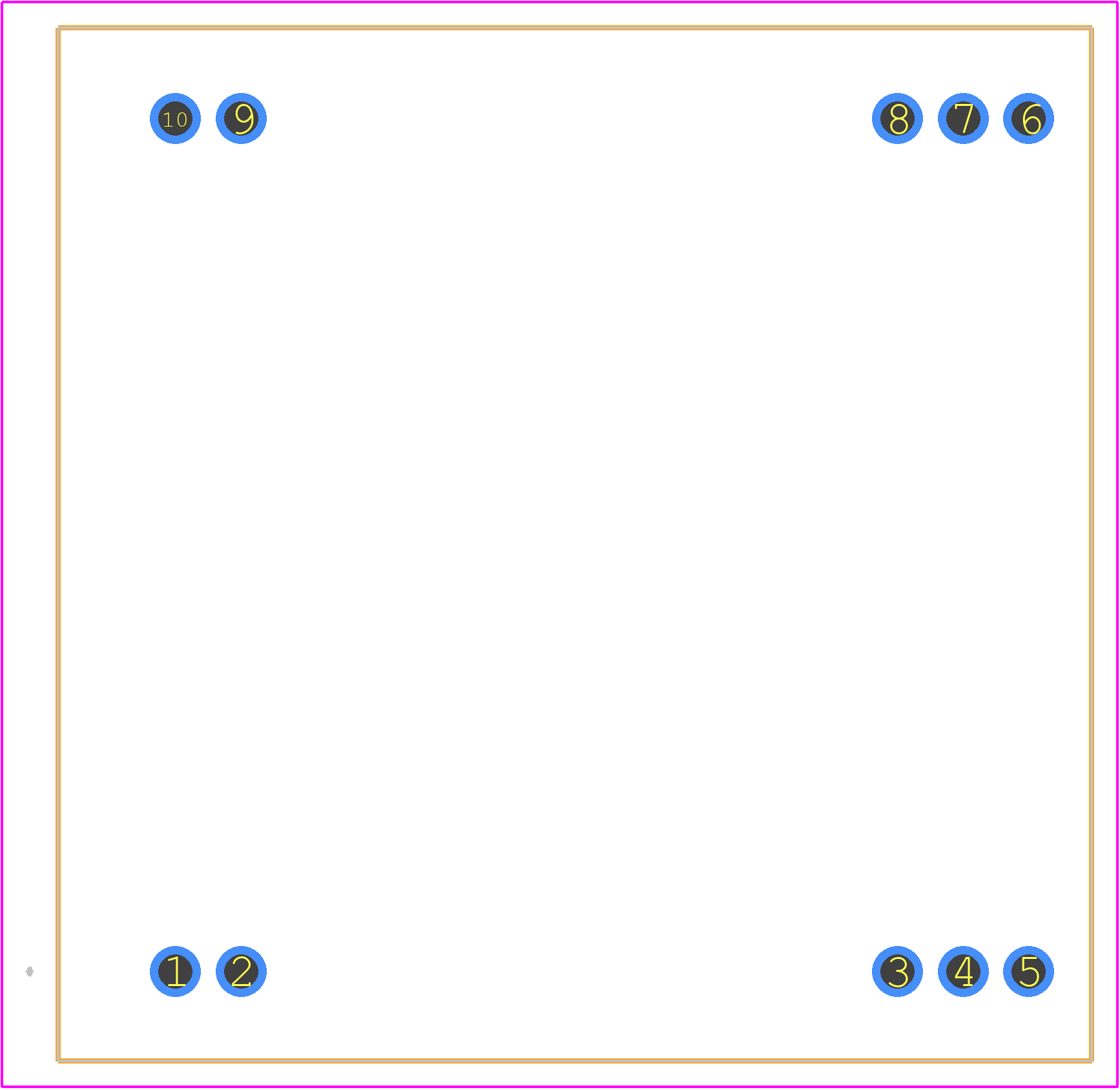

PCB Footprints
2DD180407C - Tamura PCB footprint - Other - Other - 2DD180407C-1
click to zoom
3D Models
2DD180407C - Tamura - 3D model - Other - 2DD180407C-1
click to zoom

2DD180407C Details

  • Manufacturer Part Number:

    2DD180407C

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-10

  • ECCN Code:

    EAR99

  • Manufacturer:

    Tamura Corporation of America

  • YTEOL:

    5

  • Additional Feature:

    -4V ADDITIONAL OUTPUT IS AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    80.5%

  • Input Voltage-Max:

    26.4 V

  • Input Voltage-Min:

    13.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-XDMA-P10

  • Length:

    42 mm

  • Line Regulation-Max:

    0.278%

  • Load Regulation-Max:

    6.667%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.16 A

  • Output Voltage-Max:

    19.5 V

  • Output Voltage-Min:

    17 V

  • Output Voltage-Nom:

    18 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,10LEAD,1.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER TEMPERATURE

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Seated Height-Max:

    13.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3.5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    40 mm

2DD180407C Frequently Asked Questions (FAQs)

  • Tamura recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure stable operation. A minimum of 2oz copper thickness is recommended for the PCB.
  • Tamura recommends using a soldering iron with a temperature range of 250°C to 270°C and a solder with a melting point of 183°C to 220°C. Apply a small amount of solder to the component leads and PCB pads, and avoid excessive soldering time to prevent thermal damage.
  • The 2DD180407C is rated for operation from -40°C to 125°C, but Tamura recommends derating the component's power handling capability above 100°C to ensure reliable operation.
  • Tamura recommends handling the component in an ESD-controlled environment, using ESD-protective packaging and tools, and grounding the component's pins to prevent ESD damage during assembly and testing.
  • Tamura recommends storing the component in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending or flexing the component's leads, and handle the component by the body, not the leads, to prevent mechanical damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2DD180407C Overview

Use the download button to access the 2DD180407C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2DD18, or try a keyword search, such as Power Supply Modules
