Tamura recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout for the input and output lines to minimize electromagnetic interference (EMI) and ensure optimal performance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the output power and current according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
Tamura recommends using a pi-filter (L-C-L) configuration on both the input and output lines to reduce electromagnetic interference (EMI). The filter components should be selected based on the specific application and frequency range of operation.
Yes, the 2DMB80407CC can be used in a redundant or parallel configuration to achieve higher power output or to provide redundancy in critical applications. However, it is essential to ensure that the devices are properly synchronized and that the output voltages are matched to prevent uneven current sharing.
The typical start-up time for the 2DMB80407CC is around 10-20 ms, and the settling time is around 50-100 ms. However, these times may vary depending on the specific application, input voltage, and output load.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2DMB80407CC Overview

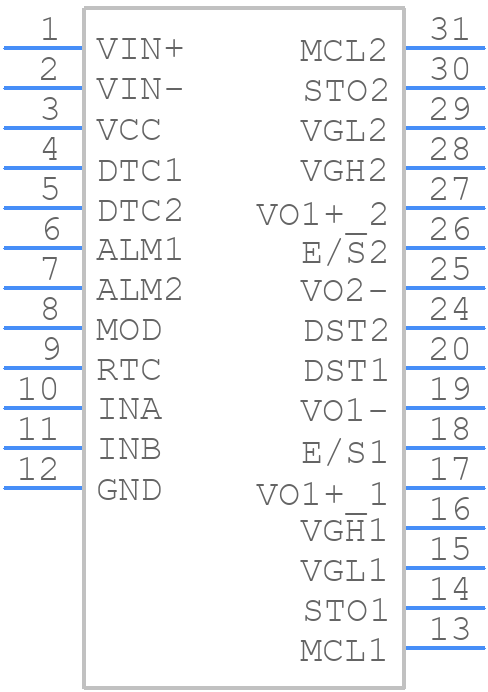

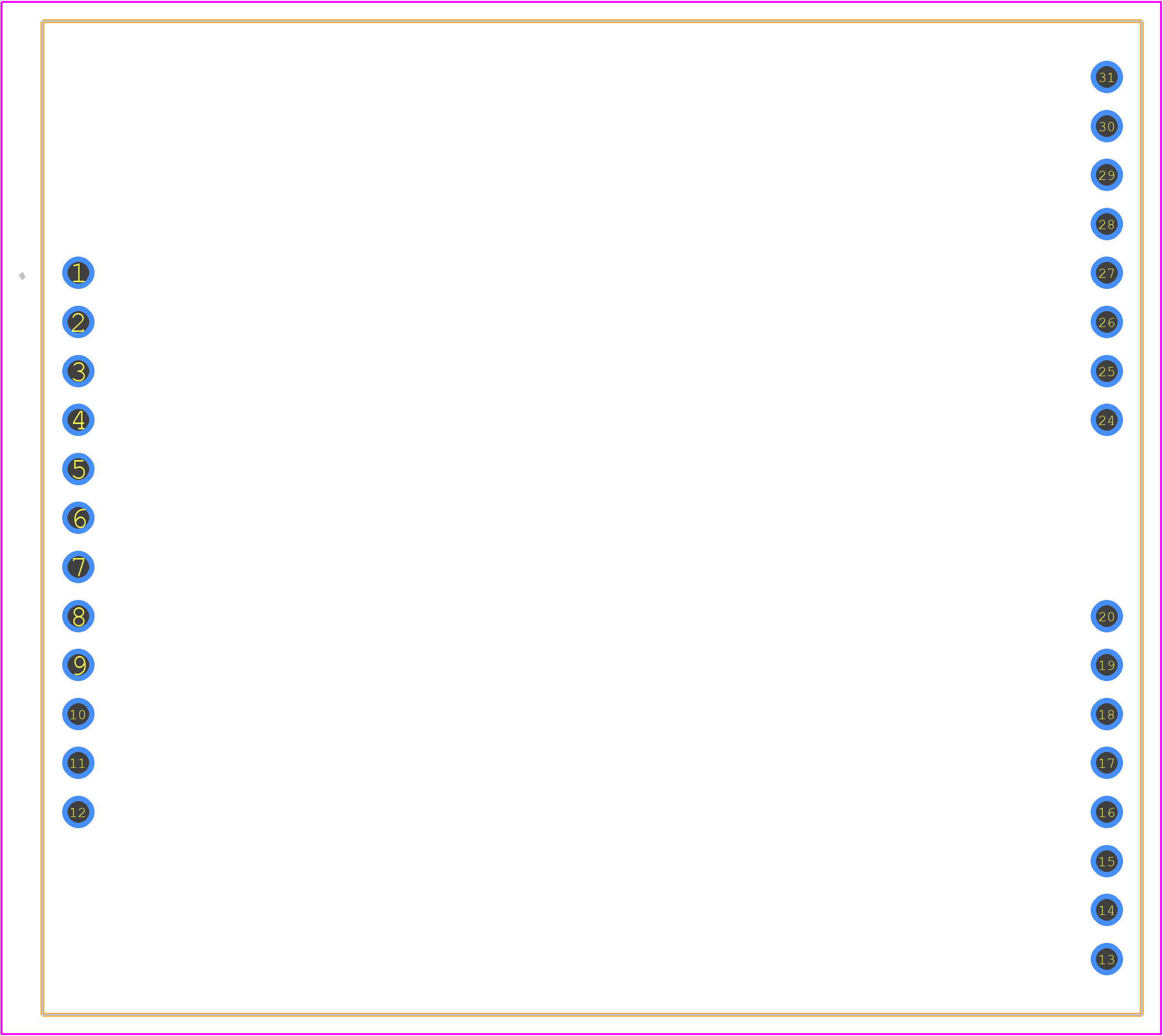

Use the download button to access the 2DMB80407CC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2DMB8,
or try a keyword search, such as MOSFET Drivers
