Infineon provides a dedicated application note (AN2014-03) for PCB layout and thermal management guidelines for the 2ED020I06FIXUMA1. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
When selecting a gate driver for the 2ED020I06FIXUMA1, consider factors such as the driver's output current, voltage rating, and propagation delay. Infineon recommends using their EiceDRIVER™ gate driver family, which is specifically designed for their IGBT modules. Consult the gate driver datasheet and application notes for more information.
While the datasheet provides some operating conditions, it's essential to consider the specific application requirements. Typically, the 2ED020I06FIXUMA1 is designed to operate within a junction temperature range of -40°C to 150°C, with a maximum voltage rating of 1200V and a maximum collector current of 20A. However, consult the datasheet and application notes for more detailed information and specific derating guidelines.
To ensure EMC and EMI compliance, follow Infineon's guidelines for PCB layout, shielding, and filtering. Additionally, consider using EMI filters, such as common-mode chokes and capacitors, to reduce electromagnetic radiation. Consult the datasheet, application notes, and relevant industry standards (e.g., IEC 61800-3) for more information.
The 2ED020I06FIXUMA1 is designed to meet high reliability standards, with a typical lifetime expectancy of 15-20 years or more, depending on the application and operating conditions. Consult Infineon's reliability and lifetime data, as well as industry standards (e.g., IEC 61709), for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2ED020I06FIXUMA1 Overview

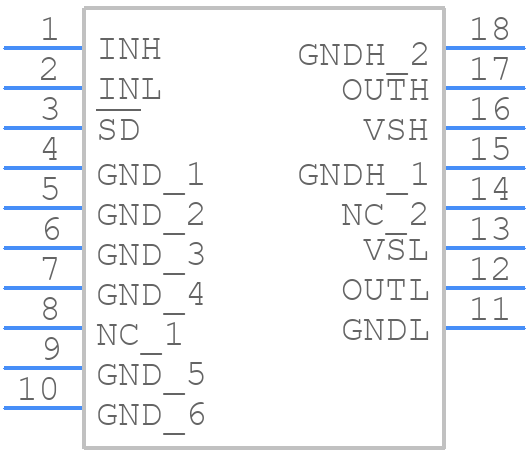

Use the download button to access the 2ED020I06FIXUMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2ED02,
or try a keyword search, such as MOSFET Drivers
