2ED21814S06JXUMA1 - Infineon

Description: Gate Drivers LEVEL SHIFT SOI

Download 2ED21814S06JXUMA1 Model

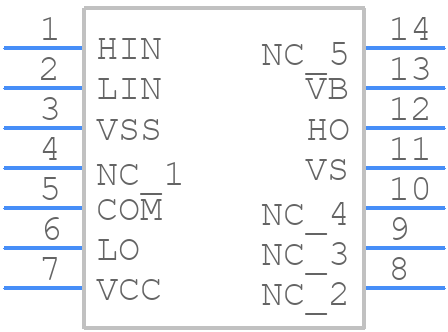

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2ED21814S06JXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 14- Lead DSO (2ED21824S06J)
click to zoom
3D Models
2ED21814S06JXUMA1 - Infineon  - 3D model - Small Outline Packages - 14- Lead DSO (2ED21824S06J)
click to zoom

2ED21814S06JXUMA1 Details

  • Manufacturer Part Number:

    2ED21814S06JXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2019-10-24

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    SOI-CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.3 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    3.9 mm

2ED21814S06JXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 2ED21814S06JXUMA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistor value for the 2ED21814S06JXUMA1 is typically between 10 ohms to 20 ohms, but this may vary depending on the specific application and switching frequency.
  • Yes, the 2ED21814S06JXUMA1 can be used in a parallel configuration, but it's essential to ensure that the modules are properly matched and that the gate drive and control circuits are designed to handle the increased current and voltage requirements.
  • The maximum allowable voltage transient for the 2ED21814S06JXUMA1 is typically around 1.5 to 2 times the maximum rated voltage, but this may vary depending on the specific application and operating conditions.
