2EDB7259YXUMA1 - Infineon

Description: 5A, 9A Gate Driver Magnetic Coupling 3000Vrms 2 Channel PG-DSO-14

Download 2EDB7259YXUMA1 Model

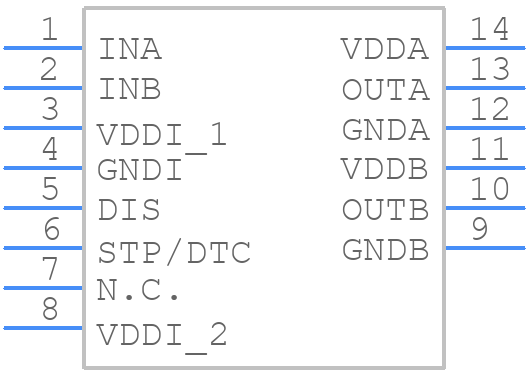

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2EDB7259YXUMA1 - Infineon PCB footprint - Other - Other - 2EDB7259YXUMA1-3
click to zoom
3D Models
2EDB7259YXUMA1 - Infineon  - 3D model - Other - 2EDB7259YXUMA1-3
click to zoom

2EDB7259YXUMA1 Details

  • Manufacturer Part Number:

    2EDB7259YXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16/14

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.046 µs

  • Turn-on Time:

    0.047 µs

  • Width:

    3.9 mm

2EDB7259YXUMA1 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Infineon's guidelines for PCB layout and thermal management. This includes using a multi-layer PCB, placing the device near a heat sink, and ensuring good airflow. Additionally, thermal vias and thermal pads can be used to improve heat dissipation.
  • To ensure EMC, it's essential to follow proper PCB design and layout guidelines, such as separating analog and digital circuits, using shielding, and implementing filtering and decoupling techniques. Additionally, Infineon provides EMC guidelines in their application notes and design guides.
  • The 2EDB7259YXUMA1 is designed to meet high reliability standards, with a typical lifespan of 10-15 years or more, depending on operating conditions. Infineon provides detailed reliability data and guidelines for ensuring long-term reliability in their documentation.
  • Infineon provides a range of debugging tools and resources, including application notes, design guides, and simulation models. Engineers can also use oscilloscopes, logic analyzers, and other diagnostic tools to identify and troubleshoot issues.
  • Common failure modes for the 2EDB7259YXUMA1 include overheating, electrical overstress, and manufacturing defects. To mitigate these risks, engineers can implement proper thermal management, overvoltage protection, and quality control measures during manufacturing and testing.
