ALSO OPERATES WITH OUTPUT SUPPLY VOLTAGE VDDA 4.5 TO 20
High Side Driver:
YES
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code:
R-PDSO-G16
Length:
10 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
STANDARD
Output Peak Current Limit-Nom:
8 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
3.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
20 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
0.044 µs
Turn-on Time:
0.044 µs
Width:
4 mm
2EDF7175FXUMA1 Frequently Asked Questions (FAQs)
Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
Infineon recommends following the soldering conditions outlined in their application note AN2013-02, which includes guidelines for reflow soldering, wave soldering, and hand soldering to ensure reliable assembly and minimize the risk of damage.
To troubleshoot issues with the internal temperature sensor, check the device's datasheet for the recommended diagnostic procedures, and consider using Infineon's evaluation boards and software tools to monitor and analyze the device's temperature sensor data.
Operating the device beyond its specified maximum ratings can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within its specified ratings to maintain its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2EDF7175FXUMA1 Overview

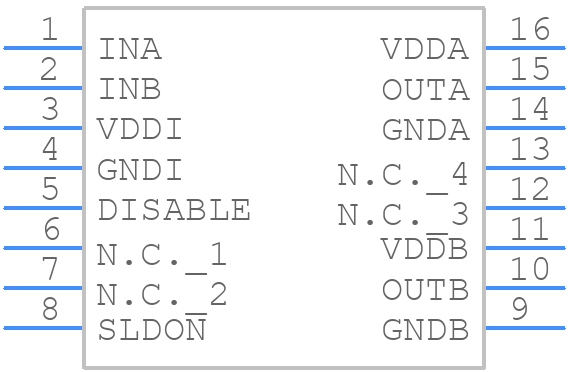

Use the download button to access the 2EDF7175FXUMA1 schematic symbol, PCB footprint, and 3D model.
