2EDF7275FXUMA1 - Infineon

Description: Gate Drivers DRIVER IC

Download 2EDF7275FXUMA1 Model

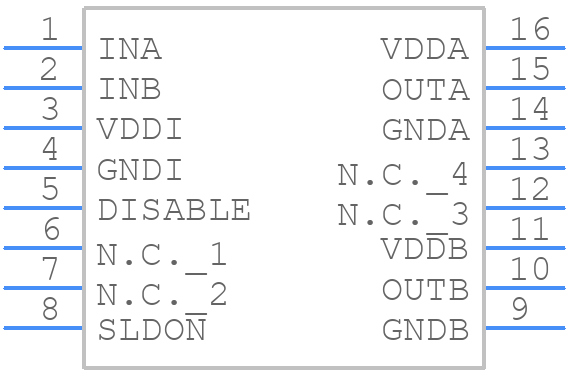

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2EDF7275FXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-16_NB
click to zoom
3D Models
2EDF7275FXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-16_NB
click to zoom

2EDF7275FXUMA1 Details

  • Manufacturer Part Number:

    2EDF7275FXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES WITH OUTPUT SUPPLY VOLTAGE VDDA 4.5 TO 20

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.044 µs

  • Turn-on Time:

    0.044 µs

  • Width:

    4 mm

2EDF7275FXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • Infineon provides EMC guidelines in their application note AN2013-02, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
  • According to Infineon's application note AN2013-03, the maximum allowed voltage stress on the device pins is 20% above the recommended operating voltage, but not exceeding the absolute maximum ratings specified in the datasheet.
  • Infineon recommends following the guidelines in their application note AN2013-04 for soldering and rework, including the use of a soldering iron with a temperature of 350°C or less, and avoiding the use of ultrasonic cleaning.
  • Infineon performs a range of reliability and qualification tests, including temperature cycling, humidity testing, and electrical stress testing, as outlined in their quality and reliability report.
