2EDL05I06PJXUMA1 - Infineon

Description: INFINEON - 2EDL05I06PJXUMA1 - IGBT GATE DRIVER, HALF BRIDGE, DSO-14

Download 2EDL05I06PJXUMA1 Model

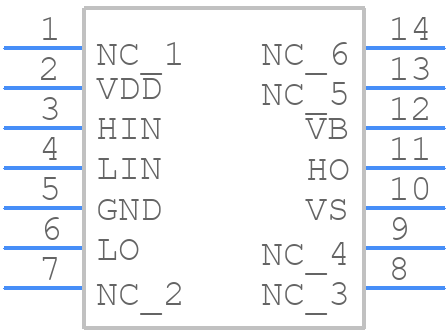

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2EDL05I06PJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14(8.55mmX3.8mm)
click to zoom
3D Models
2EDL05I06PJXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-14(8.55mmX3.8mm)
click to zoom

2EDL05I06PJXUMA1 Details

  • Manufacturer Part Number:

    2EDL05I06PJXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-14

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.59 µs

  • Turn-on Time:

    0.61 µs

  • Width:

    3.9 mm

2EDL05I06PJXUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's current rating at high temperatures.
  • The maximum allowed voltage on the gate driver output is 15V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Yes, the 2EDL05I06PJXUMA1 can be used in a half-bridge configuration. However, ensure proper dead-time management and consider the device's maximum allowed voltage and current ratings.
  • Check the device's datasheet for the overcurrent protection threshold and response time. Use an oscilloscope to monitor the device's current and voltage waveforms to identify the issue.
