2EDL8034G4CXTMA1 - Infineon

Description: 120 V boot, 3 A / 4 A, junction-isolated high-side and low-side gate driver IC

Download 2EDL8034G4CXTMA1 Model

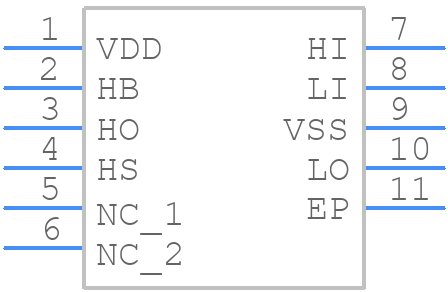

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2EDL8034G4CXTMA1 - Infineon PCB footprint - Other - Other - PG-VDSON-10-2
click to zoom
3D Models
2EDL8034G4CXTMA1 - Infineon  - 3D model - Other - PG-VDSON-10-2
click to zoom

2EDL8034G4CXTMA1 Details

  • Manufacturer Part Number:

    2EDL8034G4CXTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VDSON-10

  • Country Of Origin:

    Japan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    117 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    4 mm

2EDL8034G4CXTMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow Infineon's guidelines for thermal management, including proper heat sink design, thermal interface material selection, and monitoring of junction temperature.
  • Infineon recommends using a gate drive circuit with a voltage range of 10-15V and a current capability of at least 1A to ensure reliable switching. They also provide a reference design in their application note AN2013-03.
  • To protect the device from overvoltage and overcurrent conditions, it's recommended to use a voltage clamp circuit and a current sense resistor in series with the device. Additionally, implementing overvoltage and overcurrent protection circuits, such as a Zener diode and a fuse, can provide additional protection.
  • Infineon recommends storing the device in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, such as using an anti-static wrist strap and a conductive foam tray.
