2EDN7524GXTMA1 - Infineon

Description: Gate Drivers

Download 2EDN7524GXTMA1 Model

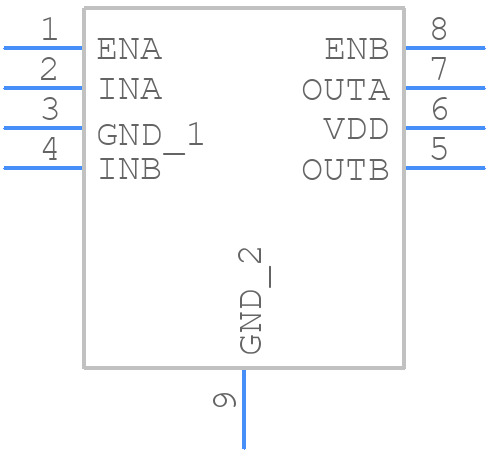

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2EDN7524GXTMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 2EDN7524GXTMA1
click to zoom
3D Models
2EDN7524GXTMA1 - Infineon  - 3D model - Small Outline No-lead - 2EDN7524GXTMA1
click to zoom

2EDN7524GXTMA1 Details

  • Manufacturer Part Number:

    2EDN7524GXTMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • Country Of Origin:

    Germany, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.023 µs

  • Turn-on Time:

    0.023 µs

  • Width:

    3 mm

2EDN7524GXTMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal pad design, copper thickness, and via placement to ensure optimal thermal performance.
  • The selection of a gate driver depends on the specific application requirements, such as voltage, current, and switching frequency. Infineon recommends using their EiceDRIVER gate driver family, which is specifically designed to work with their IGBT modules.
  • The maximum allowed overcurrent and overvoltage for the 2EDN7524GXTMA1 are specified in the datasheet, but it's essential to note that exceeding these limits can lead to permanent damage. It's recommended to design the system with sufficient margins to ensure reliable operation.
  • To ensure EMC, follow the guidelines in the datasheet and application notes, and consider using shielding, filtering, and grounding techniques to minimize electromagnetic interference.
  • The recommended cooling system depends on the specific application and power dissipation requirements. Infineon provides guidelines for heat sink design and thermal interface materials in their application notes.
