Part Image

2EDS7165HXUMA1 - Infineon

Description: Gate Drivers DRIVER IC

Download 2EDS7165HXUMA1 Model

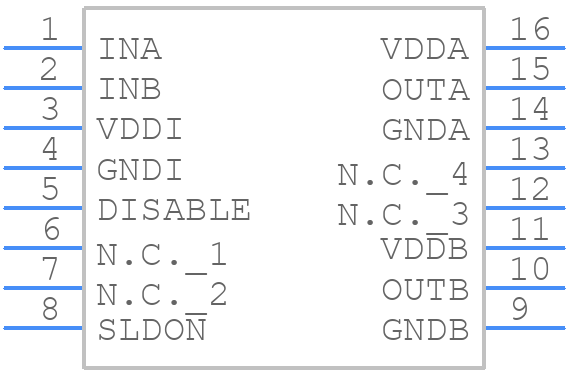

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2EDS7165HXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-16-11 -+
click to zoom
3D Models
2EDS7165HXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-16-11 -+
click to zoom

2EDS7165HXUMA1 Details

  • Manufacturer Part Number:

    2EDS7165HXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • Moisture Sensitivity Level:

    3

2EDS7165HXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2019-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust cooling system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms.
  • Using a different gate driver IC may affect the performance, reliability, and electromagnetic compatibility (EMC) of the system. It's recommended to use the gate driver IC specified by Infineon to ensure optimal performance and to minimize the risk of compatibility issues.
  • To troubleshoot issues related to the device's internal temperature monitoring, check the thermal monitoring pin (TMON) for proper connection and functionality. Verify that the thermal monitoring circuitry is properly configured and that the temperature threshold values are set correctly. Consult the datasheet and application notes for more information on troubleshooting temperature-related issues.
  • Operating the device at a lower voltage than the recommended minimum voltage may affect its performance, reliability, and functionality. It may lead to reduced switching frequency, increased power losses, and potentially even device failure. It's recommended to operate the device within the specified voltage range to ensure optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2EDS7165HXUMA1 Overview

Use the download button to access the 2EDS7165HXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2EDS7, or try a keyword search, such as MOSFET Drivers
