2MJ-0402A110 - Multicomp Pro

Description: MULTICOMP PRO - 2MJ-0402A110 - Circular Connector, Right Angle Receptacle, 4 Contacts, Solder Socket, Bayonet

Download 2MJ-0402A110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2MJ-0402A110 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

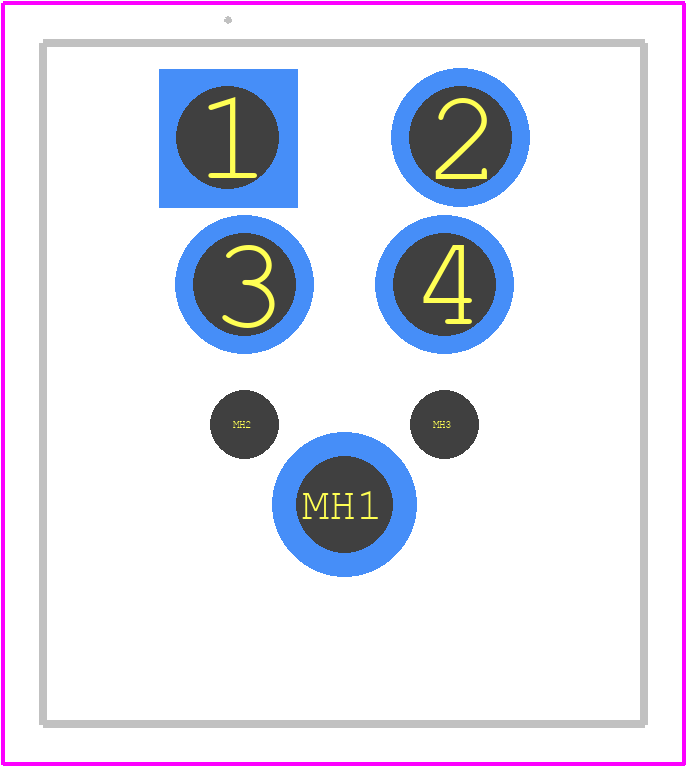

2MJ-0402A110 - Multicomp Pro PCB footprint - Other - Other - 2MJ-0402A110-1
click to zoom
3D Models
2MJ-0402A110 - Multicomp Pro - 3D model - Other - 2MJ-0402A110-1
click to zoom

2MJ-0402A110 Details

  • Manufacturer Part Number:

    2MJ-0402A110

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    3.5

  • Body Breadth:

    0.591 inch

  • Body Depth:

    0.669 inch

  • Body Length:

    0.591 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Termination:

    Silver (Ag) - with Nickel (Ni) barrier

  • JESD-609 Code:

    e4

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Rated Current (Power):

    7.5 A

  • Rated Voltage:

    20 V

  • Termination Type:

    SOLDER

2MJ-0402A110 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 2MJ-0402A110 is between 250°C to 260°C, with a maximum peak temperature of 260°C for a duration of 5 seconds to 10 seconds.
  • Yes, the 2MJ-0402A110 is compatible with lead-free soldering processes, and it meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The MSL of the 2MJ-0402A110 is level 3, which means it can withstand a maximum of 168 hours of exposure to a humidity level of 30°C and 60% relative humidity before soldering.
  • Yes, the 2MJ-0402A110 is suitable for use in high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality materials and manufacturing process.
  • The typical failure rate of the 2MJ-0402A110 is very low, with a FIT (Failure In Time) rate of less than 1 failure per billion device-hours, making it a highly reliable component.
