2N3055 - Multicomp Pro

Description: Bipolar (BJT) Single Transistor, General Purpose, NPN, 60 V, 15 A, 115 W, TO-3, Through Hole

Download 2N3055 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2N3055 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

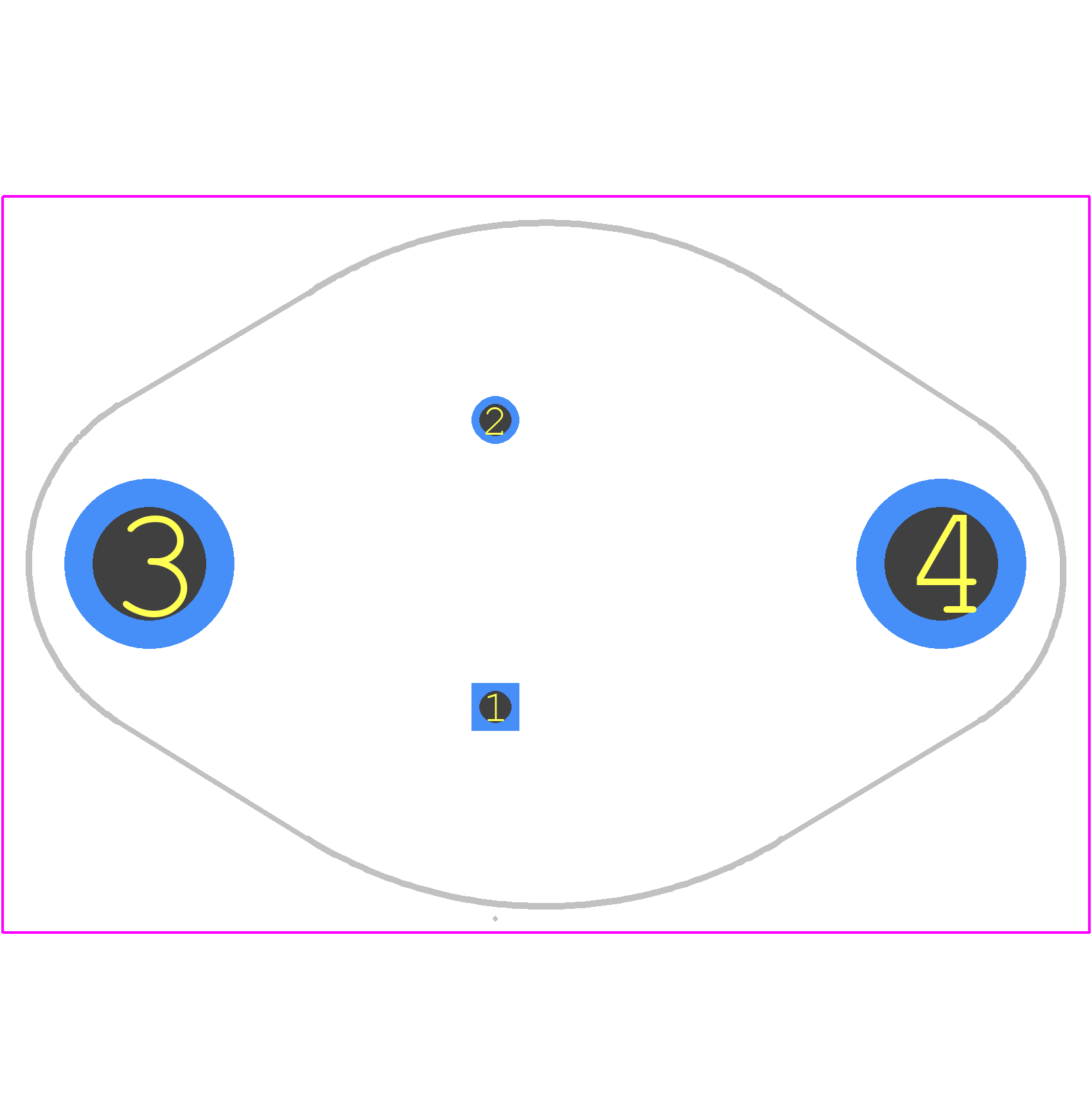

2N3055 - Multicomp Pro PCB footprint - Other - Other - TO-3_2023-1
click to zoom
3D Models
2N3055 - Multicomp Pro - 3D model - Other - TO-3_2023-1
click to zoom

2N3055 Details

  • Manufacturer Part Number:

    2N3055

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    15 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    5

  • JEDEC-95 Code:

    TO-3

  • JESD-30 Code:

    O-MBFM-P2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    NO

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    2.5 MHz

2N3055 Frequently Asked Questions (FAQs)

  • The maximum safe operating temperature for the 2N3055 is 200°C, but it's recommended to keep it below 150°C for reliable operation.
  • While the 2N3055 can be used as a switch, it's not ideal for high-frequency circuits due to its relatively slow switching time (around 2-3 microseconds). Consider using a faster transistor or a dedicated high-frequency switch.
  • To prevent thermal runaway, ensure proper heat sinking, keep the transistor away from heat sources, and use a thermal protection circuit or a temperature sensor to monitor the transistor's temperature.
  • A class-AB biasing scheme is recommended for the 2N3055 in a linear amplifier circuit, with a quiescent current of around 10-20 mA to ensure stable operation.
  • Yes, the 2N3055 can be used in a push-pull amplifier circuit, but it's essential to ensure proper matching of the transistors and a well-designed output stage to prevent distortion and oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2N3055 Overview

Use the download button to access the 2N3055 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N305, or try a keyword search, such as Other Transistors
