- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2N3055
- Part Number 2N3055
- Manufacturer STMicroelectronics
- Pin Count 4
- Part Category Transistor BJT NPN
- Package Category Other

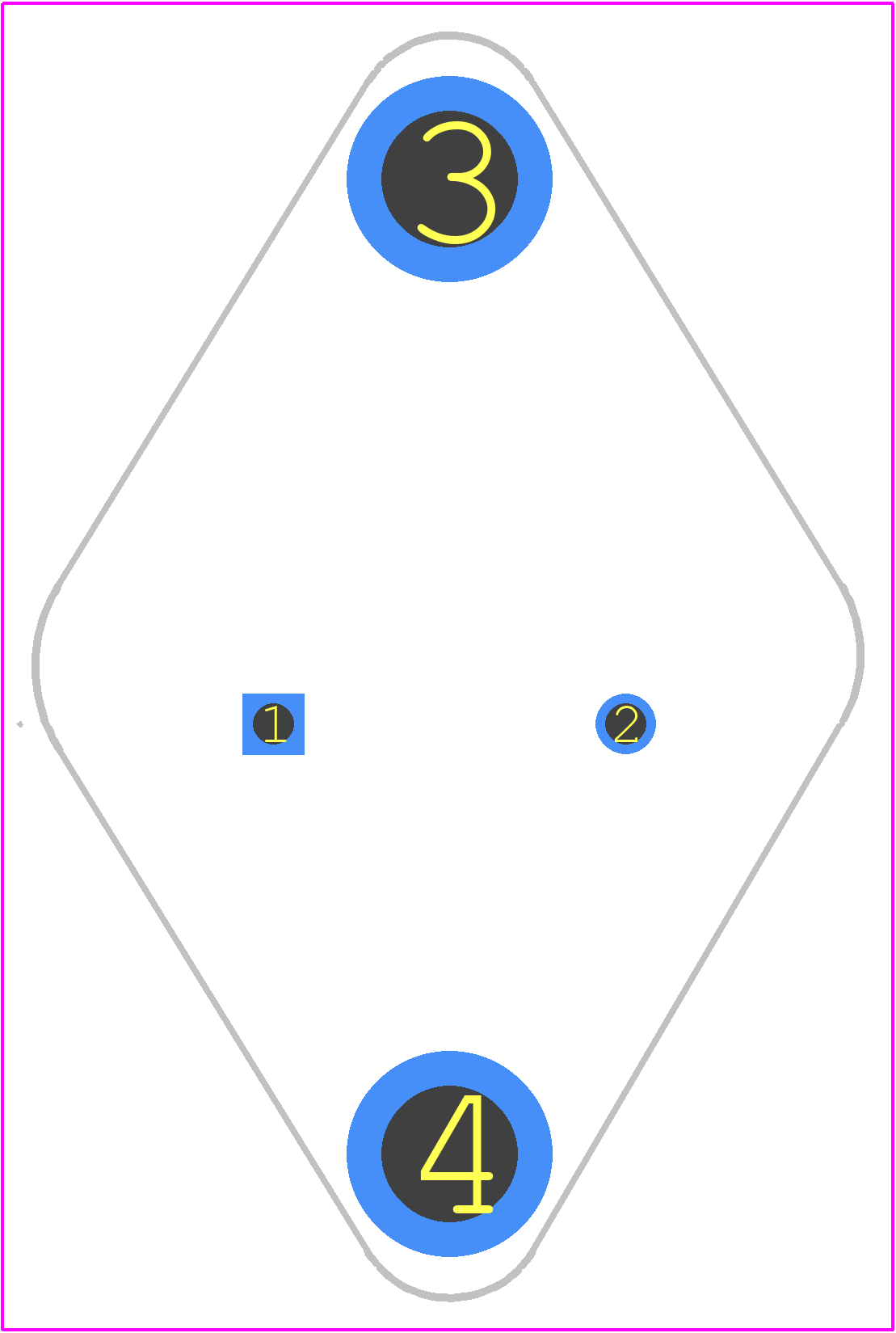

- Footprint Name Other - TO-3_2022
- Released Date Jan 7, 2021
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
2N3055 Details
-
Manufacturer Part Number:
2N3055
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TO-204AA
-
Package Description:
ROHS COMPLIANT PACKAGE-2
-
Pin Count:
2
-
ECCN Code:
EAR99
-
HTS Code:
8541.29.00.95
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
2N3055 Frequently Asked Questions (FAQs)
-
The maximum safe operating area (SOA) of the 2N3055 is not explicitly stated in the datasheet. However, it can be estimated based on the transistor's thermal resistance, power dissipation, and voltage ratings. As a general guideline, the SOA is typically limited by the maximum junction temperature (Tj) of 150°C, and the maximum collector-emitter voltage (Vce) of 60V.
-
To ensure the 2N3055 is properly biased for linear operation, you should ensure that the base-emitter voltage (Vbe) is around 0.7V, and the collector-emitter voltage (Vce) is around 1-2V. You can use a voltage divider network to set the base voltage, and a current-limiting resistor to set the collector current.
-
The maximum switching frequency of the 2N3055 is not explicitly stated in the datasheet. However, based on the transistor's transition frequency (ft) of around 2MHz, it is generally recommended to limit the switching frequency to around 100kHz to 200kHz to ensure reliable operation.
-
While the 2N3055 can handle high currents, it is not recommended to use it as a switch in high-current applications due to its relatively low current gain (hFE) and high saturation voltage (Vce(sat)). Instead, consider using a transistor with a higher current rating and lower saturation voltage, such as the TIP3055 or MJ11016.
-
To protect the 2N3055 from voltage spikes and transients, you can use a combination of voltage clamping devices such as zener diodes, TVS diodes, or varistors. Additionally, consider adding a snubber network or a RC filter to reduce voltage ringing and oscillations.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2N3055 Overview
Use the download button to access the 2N3055 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N305,
or try a keyword search, such as Other Transistors
