Part Image

2N3055 - onsemi

Description: Bipolar Transistors - BJT BIP T03 NPN 15A 60V

Download 2N3055 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

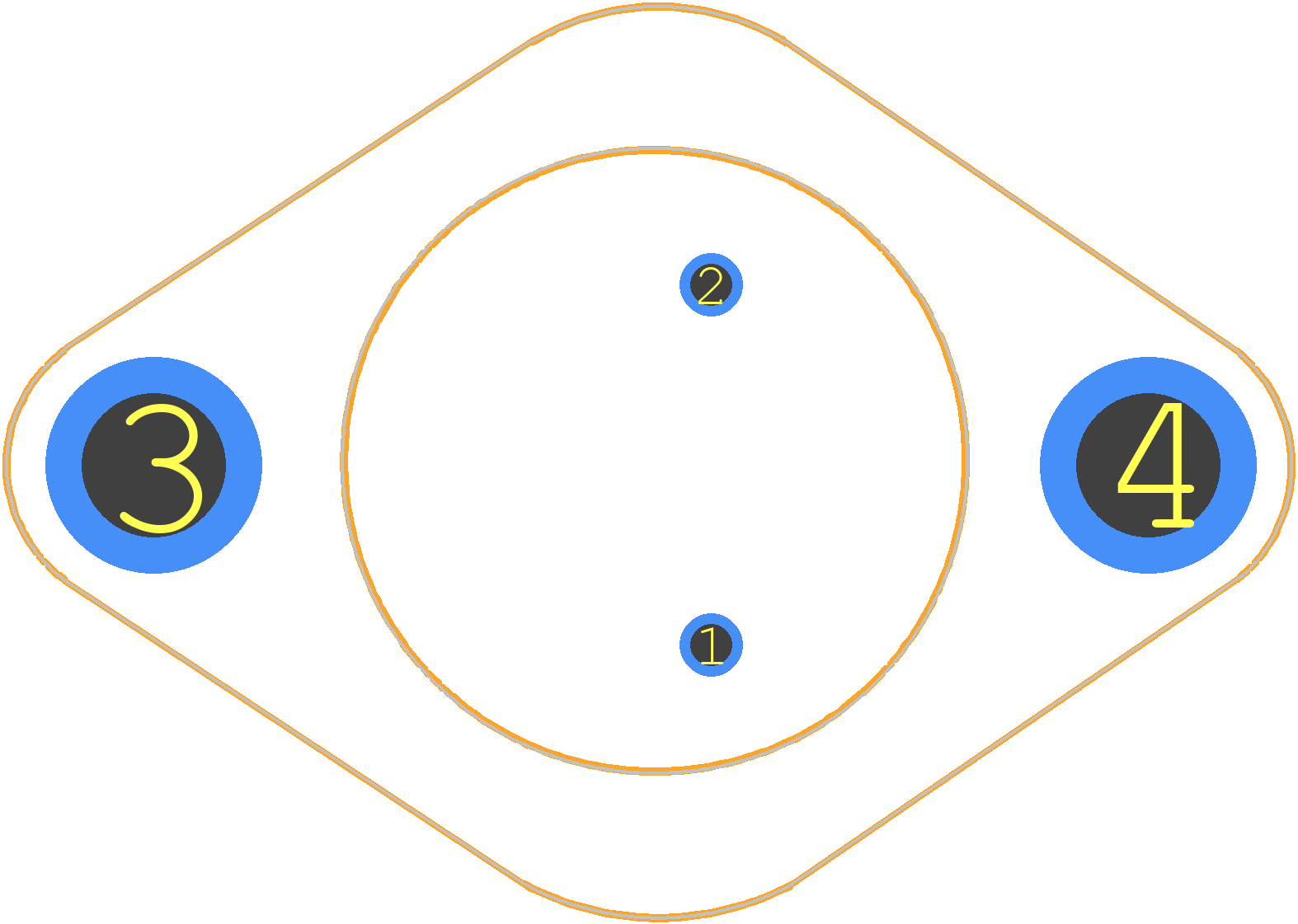

2N3055 - onsemi PCB footprint - Other - Other - TO-204 (TO-3) (1-07)
click to zoom

3D Models

2N3055 - onsemi  - 3D model - Other - TO-204 (TO-3) (1-07)
click to zoom

2N3055 Details

  • Manufacturer Part Number:

    2N3055

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-3

  • Package Description:

    FLANGE MOUNT, O-MBFM-P2

  • Pin Count:

    2

  • Manufacturer Package Code:

    CASE 1-07

  • Reach Compliance Code:

    not_compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    onsemi

  • Risk Rank:

    8.75

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    15 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    5

  • JEDEC-95 Code:

    TO-204AA

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    240

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    115 W

  • Qualification Status:

    Not Qualified

  • Subcategory:

    Other Transistors

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    2.5 MHz

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2N3055 Overview

Use the download button to access the 2N3055 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N305, or try a keyword search, such as Small Signal Bipolar Transistors

Parts related to 2N3055

Showing 0 results

2N3055 Alternates

Showing results

Image Part Number Model
Part Image 2N3055 Central Semiconductor Corp

Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin, TO-3, 2 PIN

Part Image 2N3055CECC TT Electronics Power and Hybrid / Semelab Limited

15A, 60V, NPN, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN

Part Image 2N3055AR1 TT Electronics Power and Hybrid / Semelab Limited

15A, 60V, NPN, Si, POWER TRANSISTOR, TO-204AA, HERMETIC SEALED, METAL, TO-3, 2 PIN

Part Image 2N3055 Powerex Power Semiconductors

Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin, TO-3, 2 PIN

Part Image 2N3055 Space Power Electronics Inc

Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, NPN, Silicon, TO-3, Metal, 2 Pin, TO-3, 2 PIN

For a full list of alternate parts for 2N3055, check out Findchips.com
