The maximum safe operating area (SOA) for the 2N3442G is not explicitly stated in the datasheet. However, it can be estimated based on the device's thermal resistance, maximum junction temperature, and power dissipation. A safe operating area can be estimated to be around 10-15W for a TO-92 package.
To ensure the 2N3442G is properly biased for linear operation, you should ensure that the base-emitter voltage (Vbe) is around 0.7V, and the collector-emitter voltage (Vce) is around 1-2V. Additionally, the collector current should be limited to the recommended maximum value to prevent thermal runaway.
The recommended heatsink for the 2N3442G depends on the specific application and power dissipation requirements. However, a general rule of thumb is to use a heatsink with a thermal resistance of around 10-20°C/W for a TO-92 package. A heatsink with a larger surface area and a thermal interface material (TIM) can help to improve heat dissipation.
Yes, the 2N3442G can be used as a switch, but it's not recommended due to its relatively low current gain (hFE) and high saturation voltage (Vce(sat)). The 2N3442G is better suited for linear amplifier applications. If you need a switching transistor, consider using a device specifically designed for switching applications, such as the 2N3904 or 2N2222.
To protect the 2N3442G from electrostatic discharge (ESD), handle the device by the body, not the leads. Use an anti-static wrist strap or mat, and ensure that the workspace is ESD-safe. Additionally, use ESD-sensitive device handling procedures, such as using a Faraday cage or ESD-protective packaging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2N3442G Overview

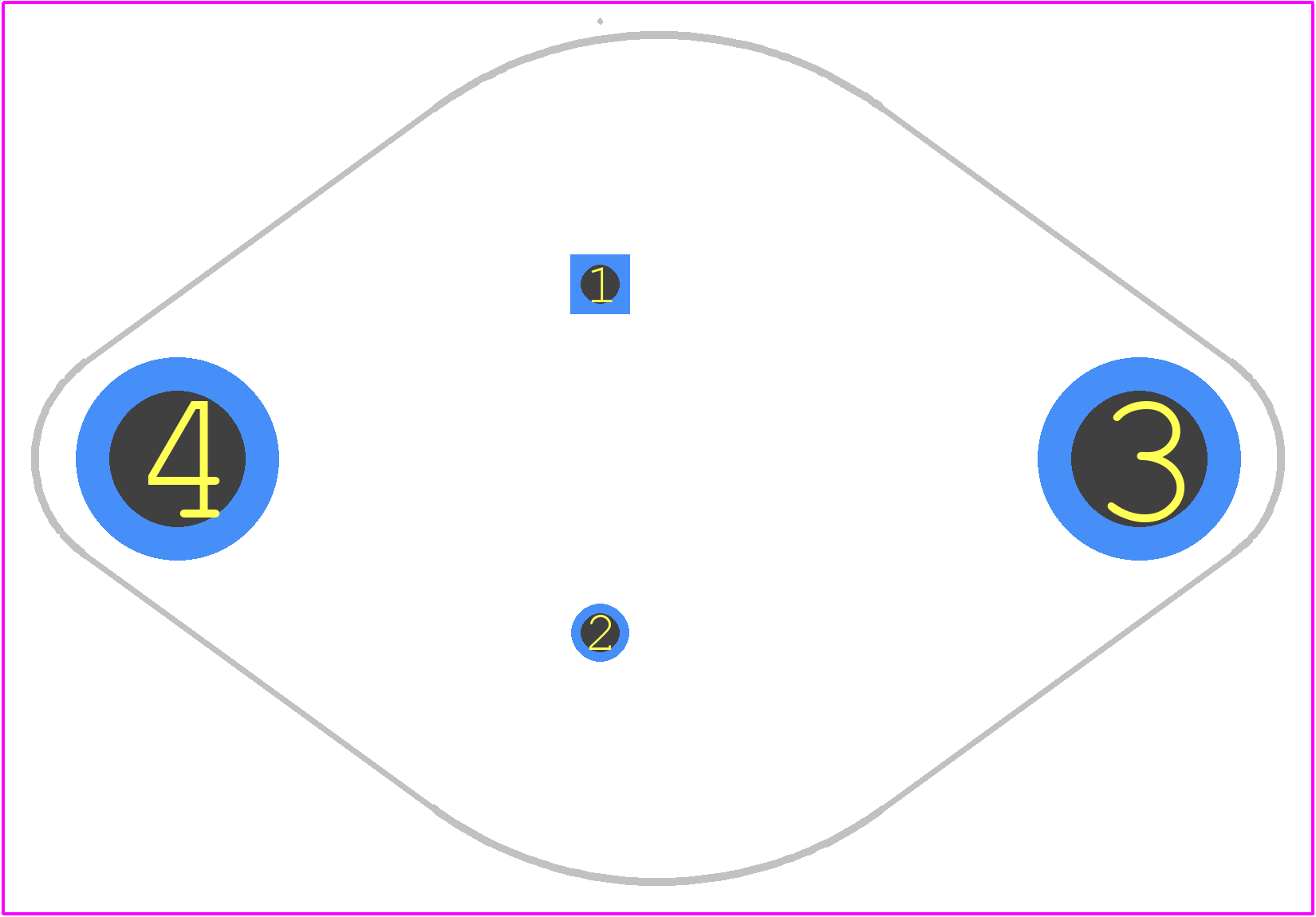

Use the download button to access the 2N3442G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N344,
or try a keyword search, such as Power Bipolar Transistors
