The maximum operating temperature range for the 2N3583 is -55°C to 150°C, as specified in the datasheet. However, it's recommended to operate the transistor within a temperature range of -40°C to 125°C for optimal performance and reliability.
To ensure proper biasing, follow the recommended operating conditions and biasing circuits provided in the datasheet. Additionally, consider the transistor's current gain (hFE) and base-emitter voltage (VBE) when designing the biasing circuit. A general rule of thumb is to maintain a base-emitter voltage between 0.6V to 0.8V for optimal performance.
The maximum collector current (IC) for the 2N3583 is 1A, as specified in the datasheet. However, it's essential to consider the transistor's power dissipation (PD) and thermal resistance (RθJA) when designing the circuit to ensure the transistor operates within its safe operating area (SOA).
Yes, the 2N3583 can be used as a switch, but it's essential to consider its switching characteristics, such as the transition frequency (ft) and storage time (ts). The transistor's switching performance may not be suitable for high-frequency applications. Additionally, ensure the transistor is properly biased and driven to minimize switching losses and ensure reliable operation.
To protect the 2N3583 from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider adding ESD protection circuits, such as diodes or resistors, to the design to prevent damage from static electricity.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2N3583 Overview

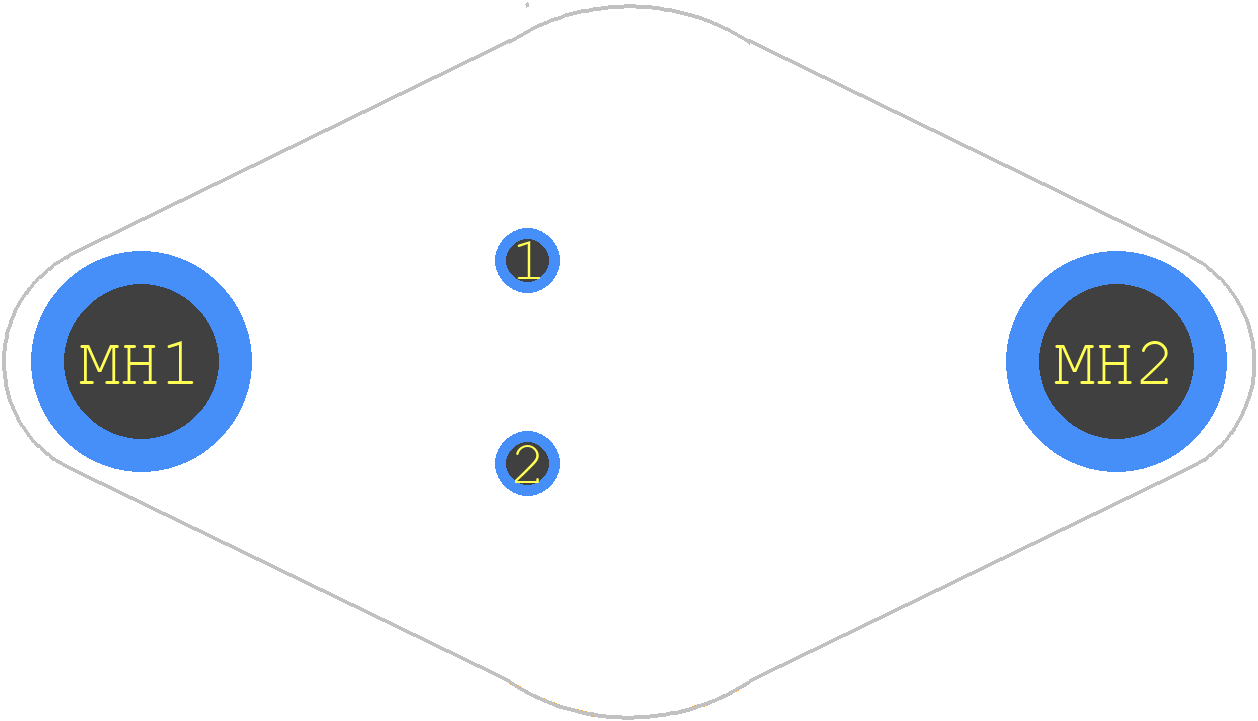

Use the download button to access the 2N3583 schematic symbol and PCB footprint.
