The maximum safe operating area (SOA) for the 2N3771G is not explicitly stated in the datasheet. However, it can be estimated based on the device's thermal resistance, power dissipation, and voltage ratings. As a general guideline, the SOA is typically limited by the device's thermal capabilities, and it's recommended to consult with onsemi's application notes or contact their support team for more information.
To ensure the 2N3771G is properly biased for linear operation, it's essential to follow the recommended biasing scheme outlined in the datasheet. This typically involves setting the base-emitter voltage (VBE) to around 0.7V and the collector-emitter voltage (VCE) to around 1-2V. Additionally, it's crucial to ensure the device is operated within its recommended operating conditions, including temperature, current, and voltage ranges.
The recommended PCB layout and thermal management for the 2N3771G involve using a thermally efficient PCB design, such as a copper-filled thermal pad, and ensuring good thermal conductivity between the device and the heat sink. It's also essential to follow onsemi's recommended land pattern and thermal design guidelines to minimize thermal resistance and ensure reliable operation.
While the 2N3771G is primarily designed for linear applications, it can be used in switching applications with some limitations. The device's switching speed is relatively slow, with a typical turn-on time of around 10-20μs, and a turn-off time of around 20-30μs. Additionally, the device's maximum switching frequency is limited to around 100kHz. It's essential to consult with onsemi's application notes and ensure the device is operated within its recommended specifications for switching applications.
To handle ESD protection for the 2N3771G, it's essential to follow proper handling and storage procedures to prevent electrostatic discharge (ESD) damage. This includes using ESD-safe materials, such as anti-static bags and wrist straps, and ensuring the device is properly grounded during handling and assembly. Additionally, it's recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, in the circuit design to protect the 2N3771G from ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2N3771G Overview

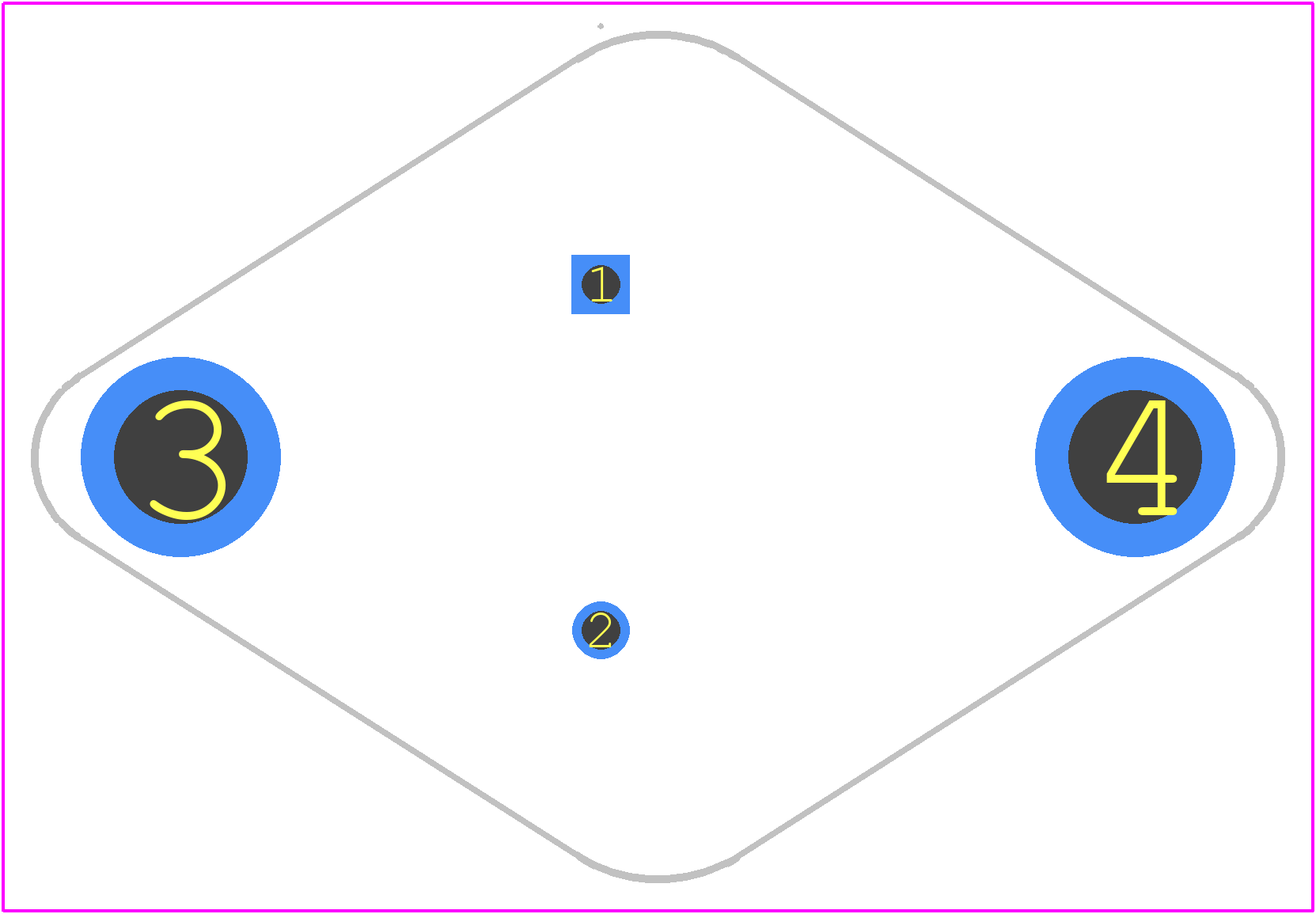

Use the download button to access the 2N3771G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2N377,
or try a keyword search, such as Power Bipolar Transistors
