2N5629 - Central Semiconductor

Description: Bipolar Transistors - BJT NPN High Pwr

Download 2N5629 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

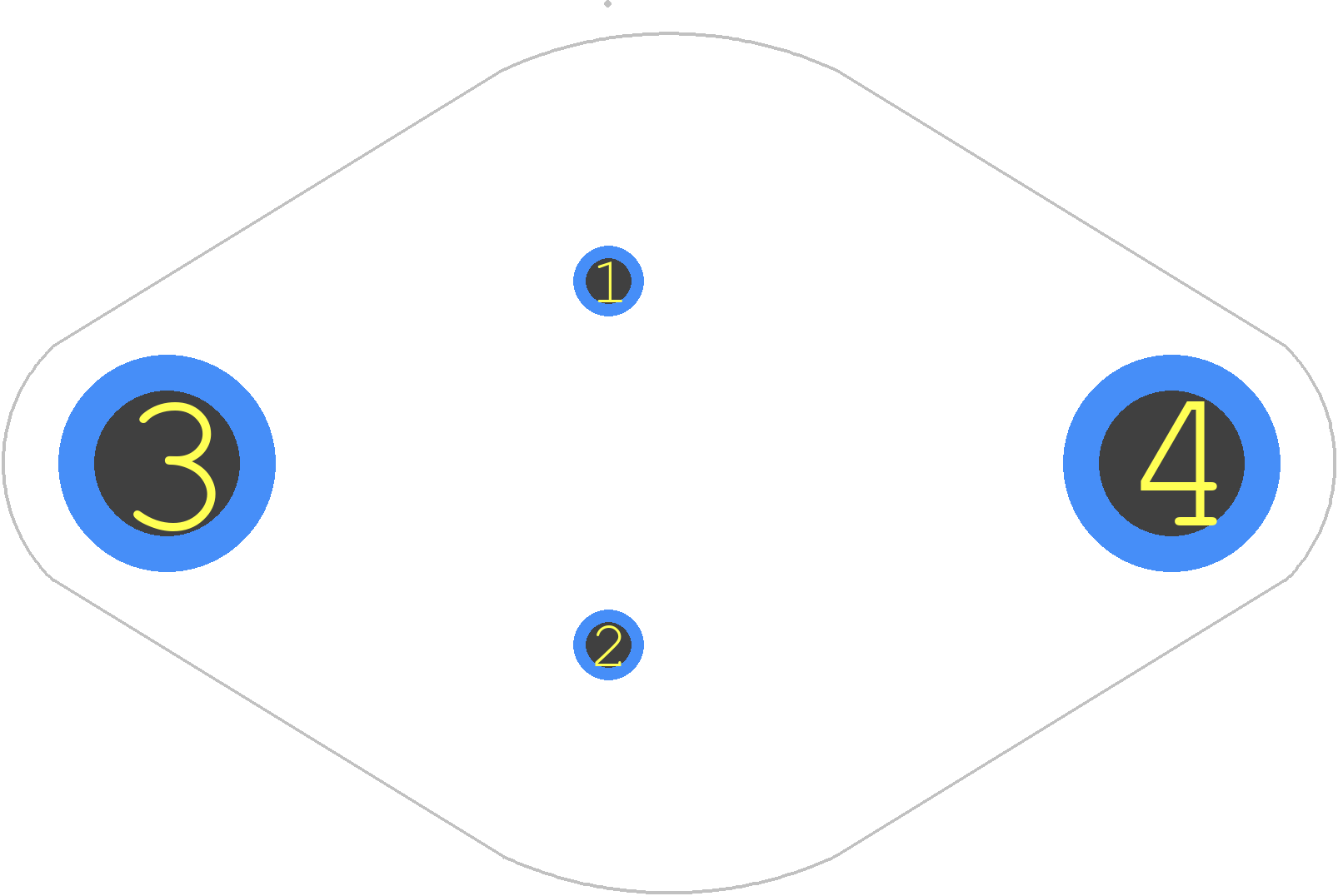

2N5629 - Central Semiconductor PCB footprint - Other - Other - 2N3055
click to zoom

2N5629 Details

  • Manufacturer Part Number:

    2N5629

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-204AA

  • Pin Count:

    2

  • ECCN Code:

    EAR99

  • Manufacturer:

    Central Semiconductor Corp

  • YTEOL:

    0

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    16 A

  • Collector-Base Capacitance-Max:

    500 pF

  • Collector-Emitter Voltage-Max:

    100 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    25

  • JEDEC-95 Code:

    TO-3

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    200 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    1 MHz

  • VCEsat-Max:

    2 V

2N5629 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 2N5629 is -55°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
  • To ensure the 2N5629 is properly biased for linear operation, you should provide a stable voltage supply, set the base-emitter voltage (VBE) to around 0.7V, and adjust the collector-emitter voltage (VCE) to the desired level. Additionally, ensure the transistor is operated within its recommended current and power dissipation limits.
  • The recommended storage temperature for the 2N5629 is -40°C to 100°C. Storing the device outside this temperature range may affect its performance and reliability.
  • Yes, the 2N5629 can be used as a switch, but it's not recommended due to its relatively low current gain (hFE) and high saturation voltage (VCE(sat)). For switching applications, it's better to use a transistor with a higher current gain and lower saturation voltage, such as the 2N3904 or 2N4401.
  • To handle ESD protection for the 2N5629, you should follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, you can add ESD protection devices, such as diodes or resistors, to the circuit to prevent damage from electrostatic discharge.
