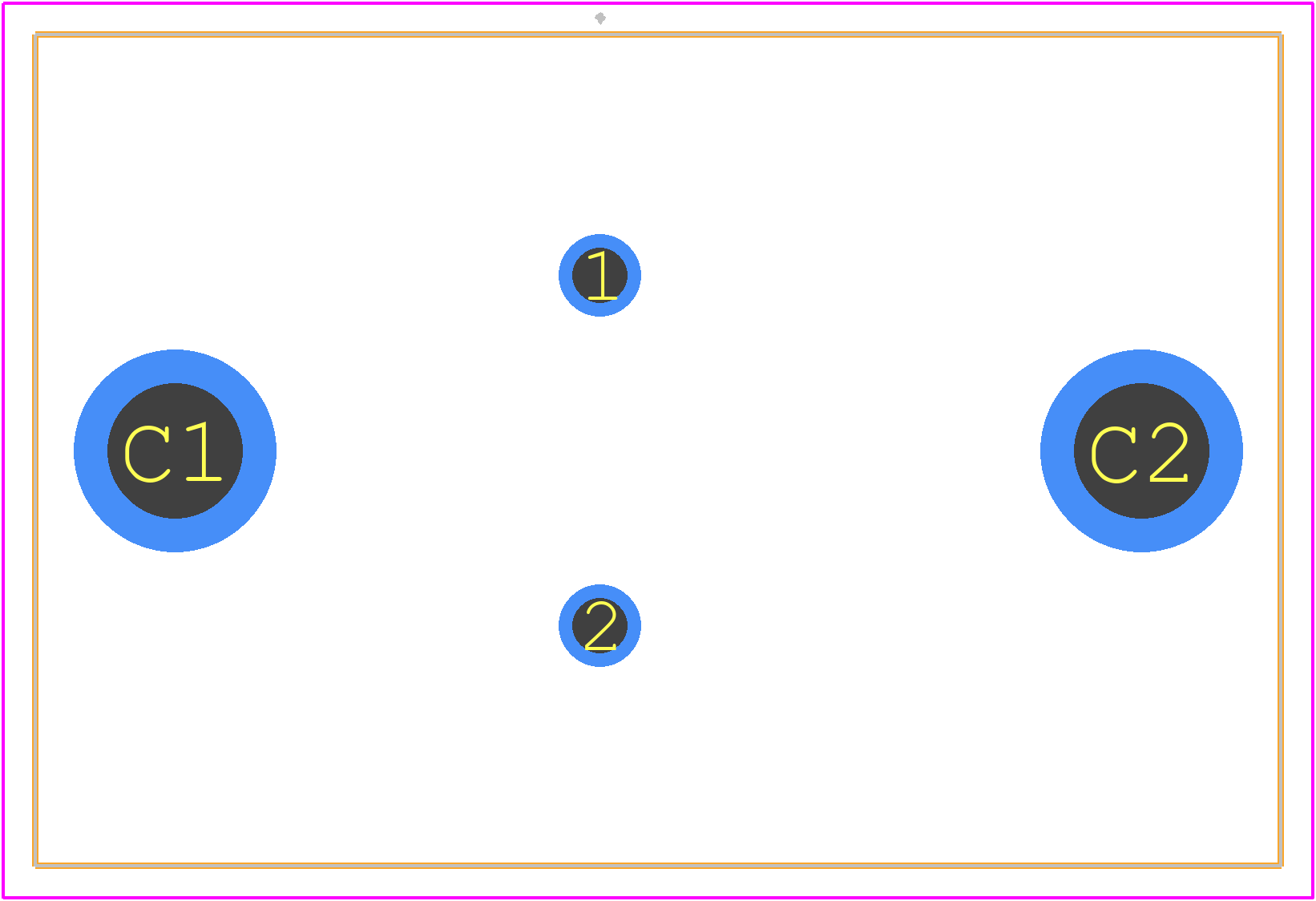

2N6277 - Microsemi Corporation PCB footprint - Other - Other - 2N6277-5
click to zoom
3D Models
2N6277 - Microsemi Corporation - 3D model - Other - 2N6277-5
click to zoom

2N6277 Details

  • Manufacturer Part Number:

    2N6277

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    BFM

  • Package Description:

    TO-3, 2 PIN

  • Pin Count:

    2

  • ECCN Code:

    EAR99

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    50 A

  • Collector-Emitter Voltage-Max:

    150 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    10

  • JEDEC-95 Code:

    TO-204AE

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    NPN

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Element Material:

    SILICON

2N6277 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 2N6277 is -55°C to 125°C.
  • To ensure proper biasing, the 2N6277 requires a voltage supply of 15V to 30V, and a current limit resistor (R_LIM) of 1kΩ to 10kΩ to limit the current to 1mA to 10mA.
  • The maximum power dissipation of the 2N6277 is 1.5W, and it is recommended to use a heat sink to ensure reliable operation.
  • Yes, the 2N6277 can be used in switching applications, but it is recommended to use a snubber circuit to reduce electromagnetic interference (EMI) and ensure reliable operation.
  • To protect the 2N6277 from ESD, it is recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, and to follow proper handling and storage procedures.
