2N7002DWH6327XTSA1 - Infineon

Description: Dual N-Channel MOSFET, 300 mA, 60 V, 6-Pin SOT-363 Infineon 2N7002DWH6327XTSA1

Download 2N7002DWH6327XTSA1 Model

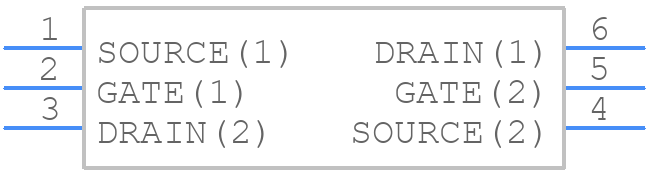

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2N7002DWH6327XTSA1 - Infineon PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363-1
click to zoom
3D Models
2N7002DWH6327XTSA1 - Infineon  - 3D model - SOT23 (6-Pin) - SOT-363-1
click to zoom

2N7002DWH6327XTSA1 Details

  • Manufacturer Part Number:

    2N7002DWH6327XTSA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.21.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Additional Feature:

    AVALANCHE RATED, LOGIC LEVEL COMPATIBLE

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    0.3 A

  • Drain-source On Resistance-Max:

    3 Ω
