2R5SVPC820M - Panasonic

2R5SVPC820M Frequently Asked Questions (FAQs)

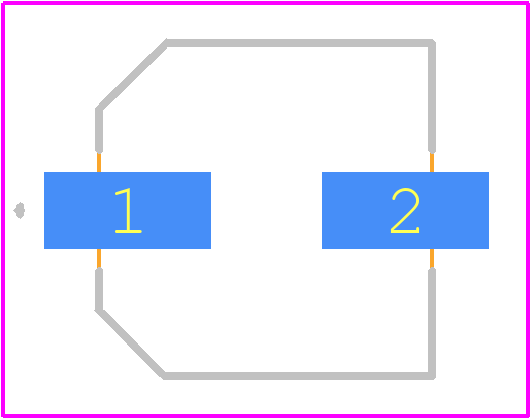

• What is the recommended land pattern for the 2R5SVPC820M?
  The recommended land pattern for the 2R5SVPC820M can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert. A general guideline is to follow the IPC-7351 standard for surface-mount components.
• How do I handle the thermal management of the 2R5SVPC820M?
  Proper thermal management is crucial for the 2R5SVPC820M. Ensure good airflow around the component, and consider using thermal vias or a heat sink if necessary. The thermal resistance of the component is specified in the datasheet, and you can use thermal simulation tools to optimize your design.
• What is the maximum operating temperature range for the 2R5SVPC820M?
  The maximum operating temperature range for the 2R5SVPC820M is -55°C to +150°C, as specified in the datasheet. However, it's essential to consider the derating curves and ensure that the component is operated within the recommended temperature range for optimal performance and reliability.
• Can I use the 2R5SVPC820M in a high-vibration environment?
  The 2R5SVPC820M is designed to withstand certain levels of vibration, but it's essential to consult the datasheet and Panasonic's reliability handbook for specific guidelines. You may need to consider additional mechanical support or vibration testing to ensure the component's reliability in your specific application.
• How do I ensure the 2R5SVPC820M is properly soldered?
  Follow the recommended soldering profile and guidelines provided in the datasheet or Panasonic's soldering handbook. Ensure that the soldering temperature and time are within the specified range, and use a solder with a melting point compatible with the component's lead-free finish.
