A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the IC to the ground plane. This helps to dissipate heat efficiently.
To ensure the stability of the output voltage, it's essential to follow the recommended capacitor values and types in the datasheet. Additionally, the input capacitor should be placed as close to the VIN pin as possible, and the output capacitor should be placed as close to the VOUT pin as possible.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the IC.
While ceramic capacitors can be used, they may not be the best choice for the output capacitor due to their low ESR (Equivalent Series Resistance). A capacitor with a low ESR, such as an electrolytic or tantalum capacitor, is recommended to ensure stability and reduce the risk of oscillation.
The power dissipation of the IC can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. Where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2SAR542PFRAT100 Overview

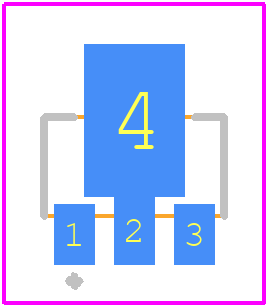

Use the download button to access the 2SAR542PFRAT100 schematic symbol, PCB footprint, and 3D model.
