2SAR553PFRAT100 - ROHM Semiconductor

Description: Bipolar Transistors - BJT PNP SOT-89 -2A 180 to 450hFE -50V

Download 2SAR553PFRAT100 Model

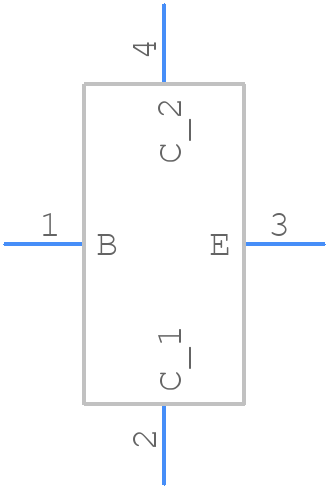

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2SAR553PFRAT100 - ROHM Semiconductor PCB footprint - Other - Other - 2SAR553PFRAT100-1
click to zoom

2SAR553PFRAT100 Details

  • Manufacturer Part Number:

    2SAR553PFRAT100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    2 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    180

  • JESD-30 Code:

    R-PSSO-F3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    320 MHz

2SAR553PFRAT100 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern is recommended for optimal thermal performance.
  • Follow the recommended soldering temperature profile and avoid exceeding the maximum soldering temperature of 260°C. Use a soldering iron with a temperature control and avoid applying excessive force or pressure during soldering.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • Ensure that the device is handled and stored in an electrostatic discharge (ESD) protective environment. Use ESD protective packaging and follow proper handling procedures to prevent EOS damage.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
