2SB1694FRAT106 - ROHM Semiconductor

Description: ROHM - 2SB1694FRAT106 - TRANSISTOR, AEC-Q101, PNP, -30V, SOT-323

Download 2SB1694FRAT106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

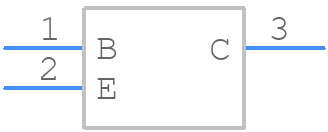

2SB1694FRAT106 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
2SB1694FRAT106 - ROHM Semiconductor PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - UMT3
click to zoom
3D Models
2SB1694FRAT106 - ROHM Semiconductor - 3D model - SOT23 (3-Pin) - UMT3
click to zoom

2SB1694FRAT106 Details

  • Manufacturer Part Number:

    2SB1694FRAT106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, UMT3, SC-70, 3 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Collector Current-Max (IC):

    1 A

  • Collector-Emitter Voltage-Max:

    30 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    270

  • JESD-30 Code:

    R-PDSO-G3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    320 MHz

2SB1694FRAT106 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 2SB1694FRAT106 is -55°C to 150°C, as specified in the datasheet.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for voltage and current, and to consider the device's thermal resistance and power dissipation.
  • The maximum safe operating area (SOA) for the 2SB1694FRAT106 is not explicitly stated in the datasheet, but it can be determined by consulting ROHM Semiconductor's application notes or by contacting their technical support.
  • Yes, the 2SB1694FRAT106 can be used in switching regulator applications due to its high switching speed and low saturation voltage. However, it's essential to ensure that the device is properly driven and that the circuit is designed to minimize switching losses.
  • To handle ESD protection when working with the 2SB1694FRAT106, follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2SB1694FRAT106 Overview

Use the download button to access the 2SB1694FRAT106 schematic symbol, PCB footprint, and 3D model.
