The recommended operating temperature range for the 2SK2512-AZ is -40°C to 150°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
To ensure proper biasing, follow the recommended voltage and current ratings specified in the datasheet. Additionally, ensure that the gate-source voltage (Vgs) is within the recommended range, typically between -2V to 2V, and the drain-source voltage (Vds) is within the specified maximum rating.
The maximum allowable power dissipation for the 2SK2512-AZ is dependent on the operating temperature and the thermal resistance of the package. Refer to the datasheet for the specific power dissipation curves and thermal resistance values to ensure the device operates within safe limits.
Yes, the 2SK2512-AZ is suitable for high-frequency switching applications due to its low gate charge and high switching speed. However, it's essential to consider the device's parasitic capacitances, gate resistance, and inductance to ensure optimal performance and minimize ringing and oscillations.
To protect the 2SK2512-AZ from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials. Additionally, ensure that the device is properly grounded during assembly and testing, and consider using ESD protection devices or circuits in the final application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2SK2512-AZ Overview

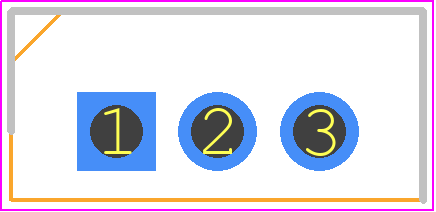

Use the download button to access the 2SK2512-AZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2SK25,
or try a keyword search, such as Power Field-Effect Transistors
