2SK4207(Q) - Toshiba

Description: 2SK4207(Q) N-Channel MOSFET, 13 A, 900 V, 3-Pin SC-65 Toshiba

Download 2SK4207(Q) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

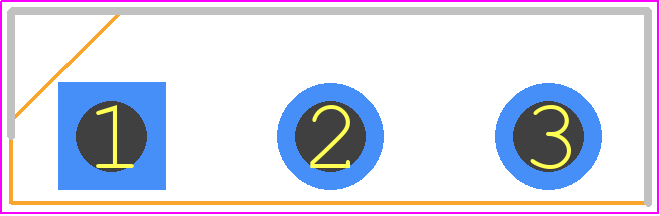

2SK4207(Q) - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - 2SK4207(Q)
click to zoom
3D Models
2SK4207(Q) - Toshiba  - 3D model - Transistor Outline, Vertical - 2SK4207(Q)
click to zoom

2SK4207(Q) Details

  • Manufacturer Part Number:

    2SK4207(Q)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SC-65, 3 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    900 V

  • Drain Current-Max (ID):

    13 A

  • Drain-source On Resistance-Max:

    0.95 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    25 pF

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    39 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

2SK4207(Q) Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 2SK4207(Q) is -55°C to 150°C.
  • The 2SK4207(Q) is a standard MOSFET, not a logic-level MOSFET.
  • The maximum drain-source voltage (Vds) rating for the 2SK4207(Q) is 250V.
  • Yes, the 2SK4207(Q) is suitable for high-frequency switching applications due to its low gate charge and fast switching times.
  • No, the 2SK4207(Q) is not a radiation-hardened device.
