Omron recommends a PCB layout with a minimum of 1.5 mm clearance around the relay module to ensure proper heat dissipation and to prevent electrical noise interference. Additionally, it is recommended to use a ground plane under the relay module to reduce electromagnetic interference.
To ensure reliable switching operation in high-vibration environments, Omron recommends securing the relay module to the PCB using screws or adhesives, and using a vibration-resistant connector or wire harness. Additionally, it is recommended to use a relay module with a high vibration resistance rating, such as the 2SMPB-02B which has a vibration resistance of 10-55 Hz, 1.5 mm double amplitude.
The maximum switching frequency for the 2SMPB-02B relay module is 30 Hz. Exceeding this frequency may lead to reduced relay life or malfunction.
The 2SMPB-02B relay module is not designed for use in safety-critical applications. Omron recommends using relay modules with safety certifications, such as UL or IEC, for safety-critical applications.
To prevent EMI from affecting the relay module, Omron recommends using a metal shield or enclosure around the relay module, keeping the relay module away from high-frequency components, and using EMI filters or chokes on the input and output lines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2SMPB-02B Overview

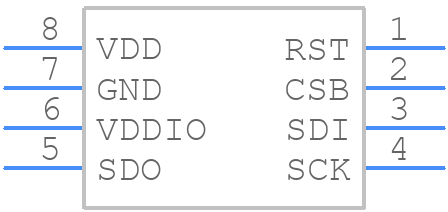

Use the download button to access the 2SMPB-02B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2SMPB,
or try a keyword search, such as Pressure Sensors
