2SMPP-03 - OMRON Electronics

Description: OMRON ELECTRONIC COMPONENTS - 2SMPP-03 - SENSOR, PRESSURE, -50 TO 50KPA, 1, 2.6MM

Download 2SMPP-03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

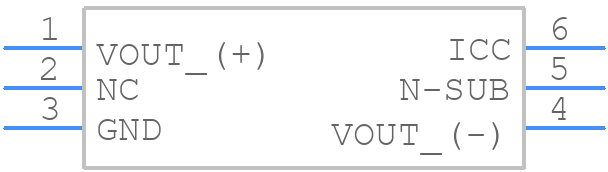

Symbol
2SMPP-03 - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints
2SMPP-03 - OMRON Electronics PCB footprint - Other - Other - 2SMPP-03-1
click to zoom
3D Models
2SMPP-03 - OMRON Electronics - 3D model - Other - 2SMPP-03-1
click to zoom

2SMPP-03 Details

  • Manufacturer Part Number:

    2SMPP-03

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6

  • Reach Compliance Code:

    Unknown

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    Port Diameter = 2.6 MM and Port Height = 6.25 MM

  • Body Breadth:

    4.75 mm

  • Body Height:

    2 mm

  • Body Length or Diameter:

    6.15 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Range-Max:

    7.2 Psi

  • Pressure Range-Min:

    -7.2 Psi

  • Pressure Sensing Mode:

    GAUGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

2SMPP-03 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 2SMPP-03 is -20°C to 80°C (-4°F to 176°F).
  • To ensure reliability in high-vibration environments, it is recommended to use a vibration-resistant mounting method, such as a screw or adhesive, and to follow the recommended torque specifications.
  • The 2SMPP-03 is not designed for use in humid or wet environments. It is recommended to use a protective coating or enclosure to prevent moisture ingress.
  • The maximum current rating for the 2SMPP-03 is 3A per pin. However, it is recommended to derate the current based on the ambient temperature and other environmental factors.
  • To troubleshoot issues with the 2SMPP-03, check the power supply voltage, ensure proper connections, and verify that the device is properly mounted and secured. If issues persist, consult the datasheet or contact OMRON Corporation support.
