The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 3-1571586-2 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector is used within its design specifications.
The 3-1571586-2 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature specifications.
The 3-1571586-2 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, consult with TE Connectivity or a qualified engineer to determine the best solution.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
3-1571586-2 Overview

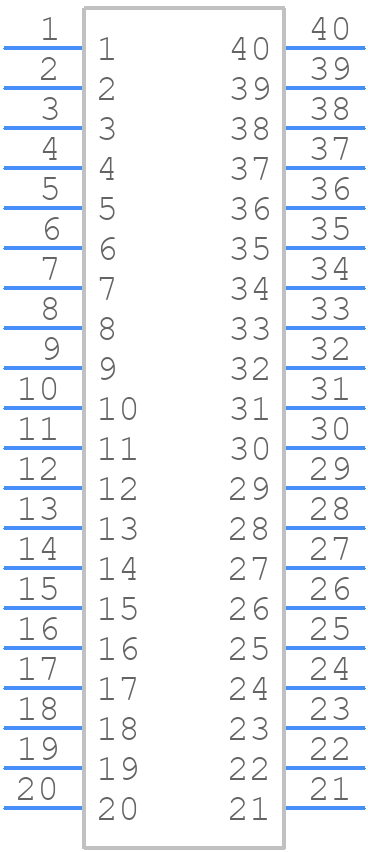

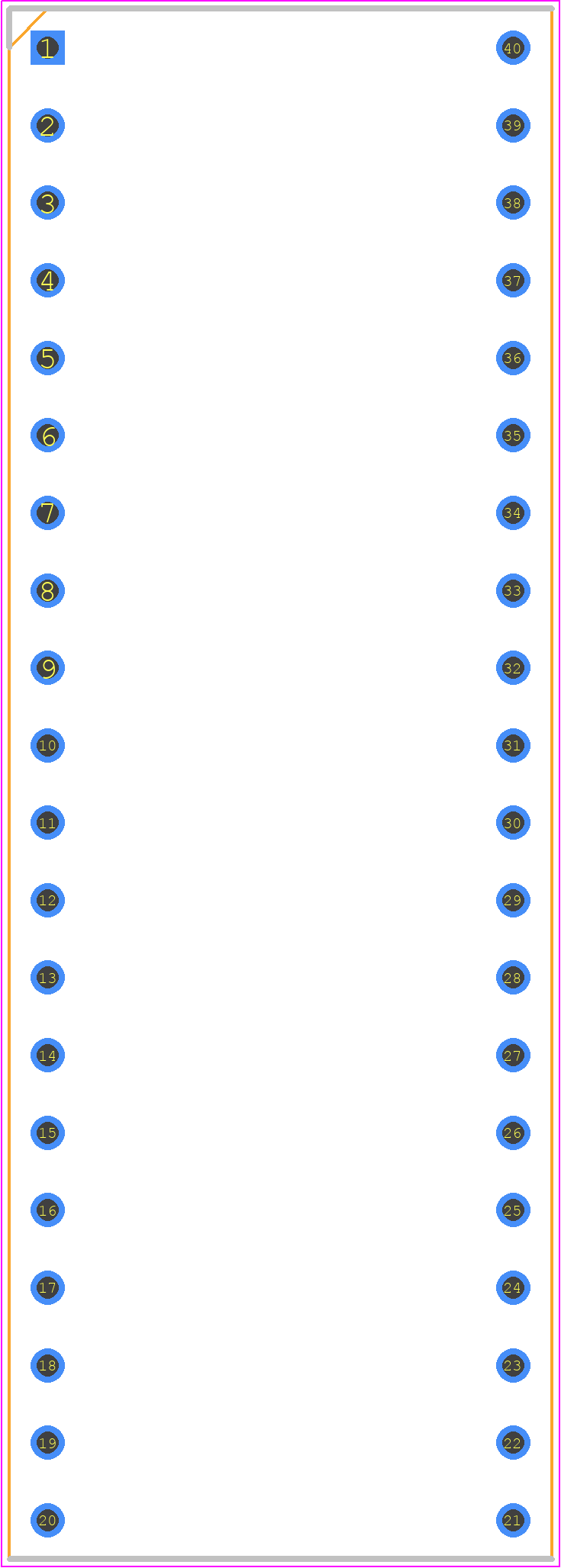

Use the download button to access the 3-1571586-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-157,
or try a keyword search, such as Sockets and Chip Carriers
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
