Part Image

3-1634221-2 - TE Connectivity

Description: 37way D-plug with female screw boardlock

Download 3-1634221-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-1634221-2 - TE Connectivity - PCB symbol
click to zoom

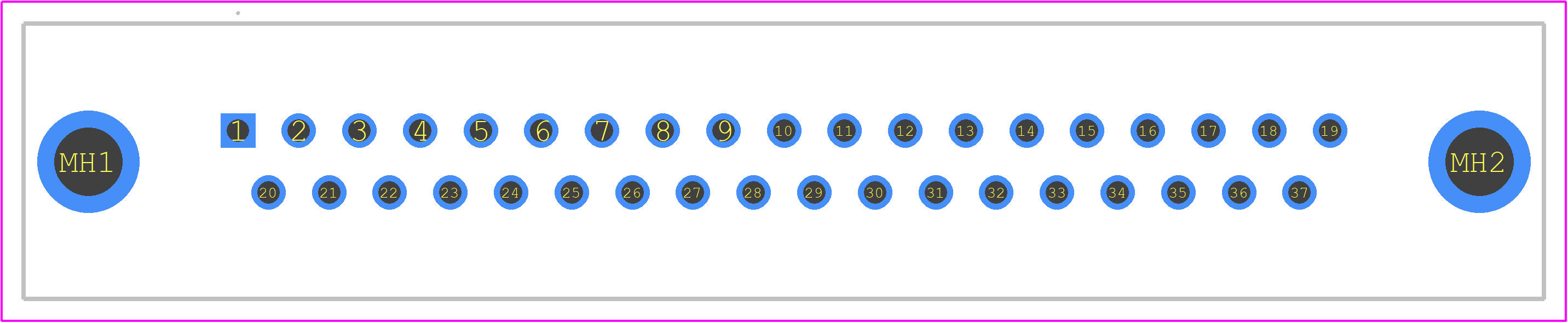

PCB Footprints
3-1634221-2 - TE Connectivity PCB footprint - Other - Other - 3-1634221-2-1
click to zoom
3D Models
3-1634221-2 - TE Connectivity - 3D model - Other - 3-1634221-2-1
click to zoom

3-1634221-2 Details

  • Manufacturer Part Number:

    3-1634221-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (15) OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

3-1634221-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 3-1634221-2 connector is designed to withstand high-vibration environments and meets the IEC 61373 standard for vibration resistance.
  • Yes, the 3-1634221-2 connector is rated for outdoor use and can withstand exposure to moisture and humidity, but it's recommended to use a sealant or conformal coating to ensure IP67 rating.
  • It's not recommended to use a wire gauge that's significantly different from the recommended 24-20 AWG, as it may affect the connector's performance and reliability.
  • To ensure proper mating, make sure the connector is properly aligned and seated, and the screw terminals are securely tightened. Also, ensure the connector is clean and free of debris.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3-1634221-2 Overview

Use the download button to access the 3-1634221-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-163, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
