3-1634689-4 - TE Connectivity

Description: 34 way IDC low profile box r/a header,1A

Download 3-1634689-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-1634689-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

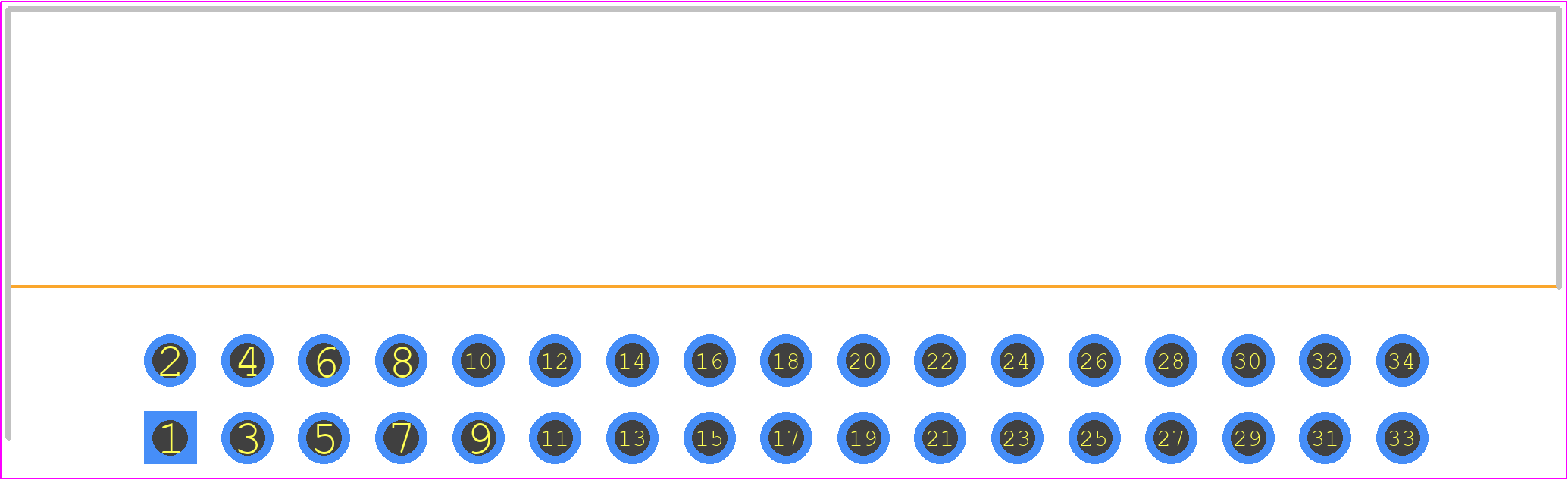

3-1634689-4 - TE Connectivity PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 3-1634689-4
click to zoom
3D Models
3-1634689-4 - TE Connectivity - 3D model - Header, Shrouded - Right Angle PTH Box - 3-1634689-4
click to zoom

3-1634689-4 Details

  • Manufacturer Part Number:

    3-1634689-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    0.343 inch

  • Body Depth:

    0.519 inch

  • Body Length:

    2.001 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    10u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

3-1634689-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 3-1634689-4 connector is designed to withstand high-vibration environments. It has a ruggedized design and meets the requirements of various industry standards, including IEC 61373 for vibration testing.
  • The 3-1634689-4 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance and longevity.
  • The 3-1634689-4 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 3-1634689-4 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors. It's essential to verify compatibility before designing your system to ensure seamless integration.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

3-1634689-4 Overview

Use the download button to access the 3-1634689-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3-163, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
