3-5646446-0 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

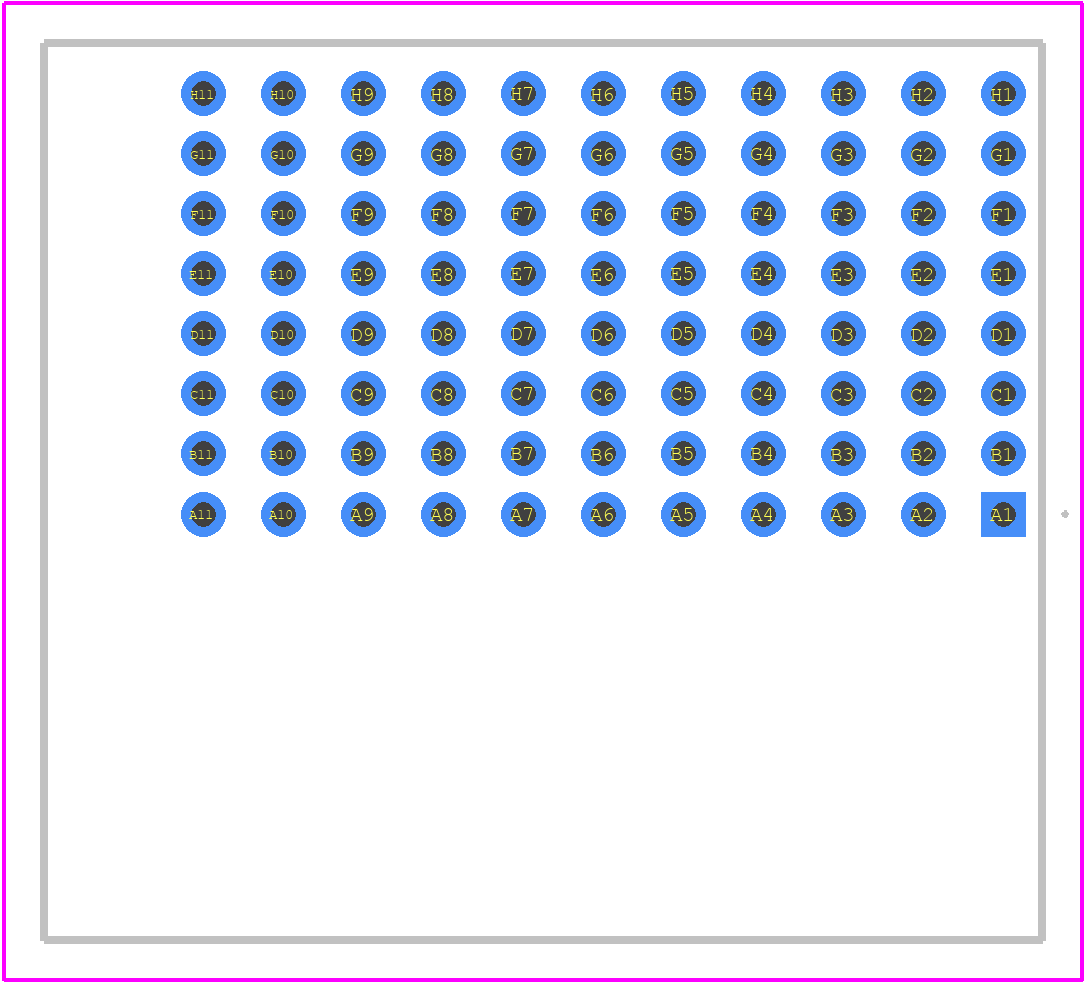

3-5646446-0 - TE Connectivity PCB footprint - Other - Other - 3-5646446-0-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3-5646446-0
Part Number 3-5646446-0
Manufacturer TE Connectivity
Pin Count 88
Part Category Connector
Package Category Other
Footprint Name Other - 3-5646446-0-2
Released Date Jan 10, 2024
Last Modified Date Jan 10, 2024 6:24 AM UTC
Pinout / Pin List Click Here (Member Only)

3-5646446-0 Details

Manufacturer Part Number:
3-5646446-0
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
6 Weeks, 6 Days
Manufacturer:
TE Connectivity
YTEOL:
8
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
8
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
PRESS FIT
Total Number of Contacts:
88

3-5646446-0 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 3-5646446-0 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial control systems.
The 3-5646446-0 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector when used in outdoor environments to maintain its performance and reliability.
The operating temperature range of the 3-5646446-0 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
Yes, the 3-5646446-0 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. It's essential to ensure compatibility before using the connector with other products.
