3-6437285-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 60 | Number of Rows 4 | Number of Signal Positions 60 | PCB Mount Orientation Horizontal | Contact Features: Contact Type Pin | Mating Pin Diameter .039 INCH | Mating Pin Diameter 1 MM | Contact Mating Area Plating Material Gold | Contact Size 1mm | Dimensions: Profile Height from PCB 21.4 MM | Profile Height from PCB .843 INCH | Connector Width 23 MM | Connector Width .906 INCH | Connector Length 78 MM | Connector Leng

Download 3-6437285-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3-6437285-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

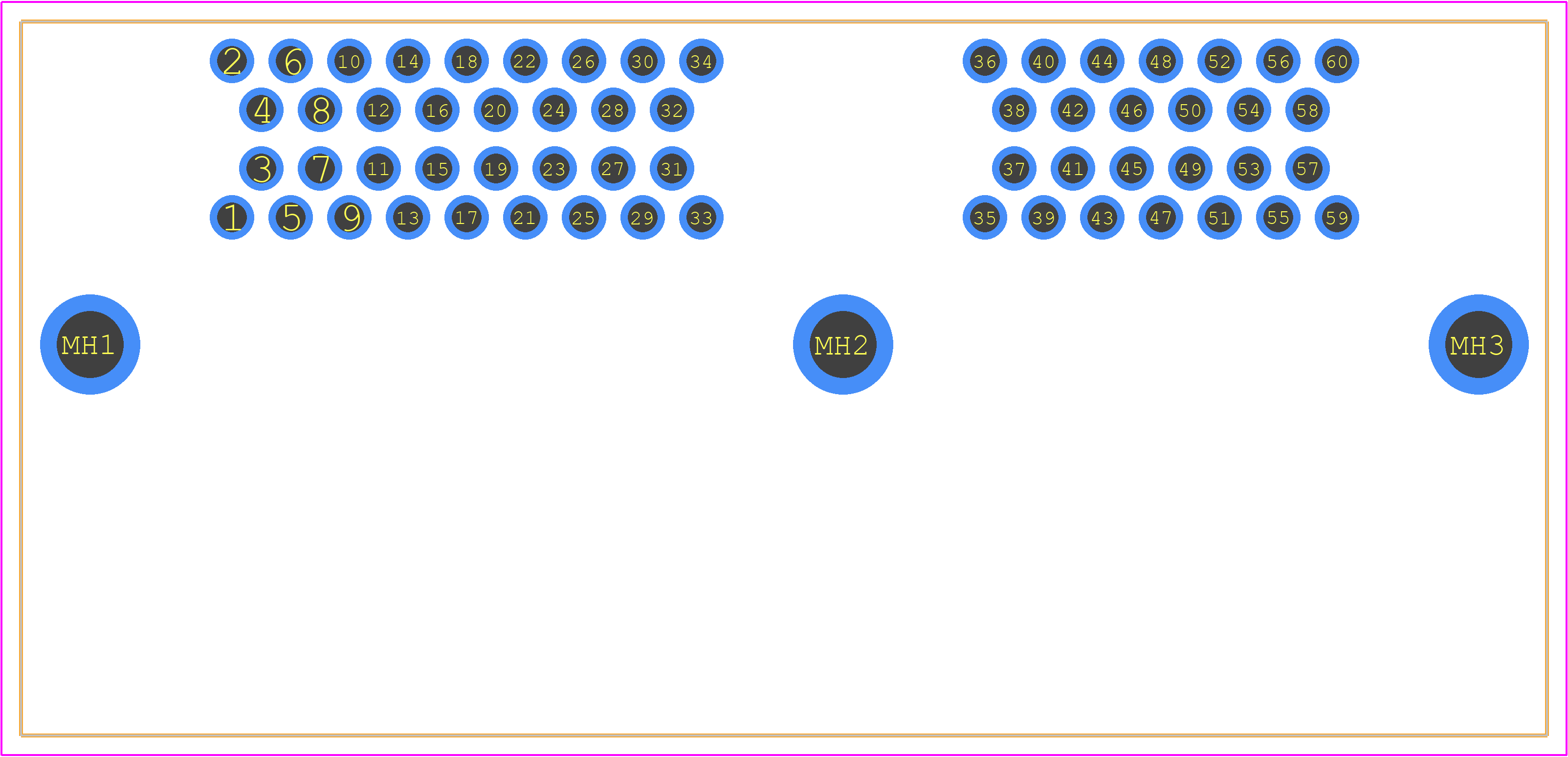

3-6437285-2 - TE Connectivity PCB footprint - Other - Other - 3-6437285-2-1
click to zoom
3D Models
3-6437285-2 - TE Connectivity - 3D model - Other - 3-6437285-2-1
click to zoom

3-6437285-2 Details

  • Manufacturer Part Number:

    3-6437285-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

3-6437285-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • Yes, the 3-6437285-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The maximum operating temperature for the 3-6437285-2 connector is 125°C (257°F).
  • Yes, the 3-6437285-2 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
