PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 30.476
- Part Number 30.476
- Manufacturer Altech
- Pin Count 6
- Part Category Connector
- Package Category Header, Unshrouded - Right Angle PTH Pin

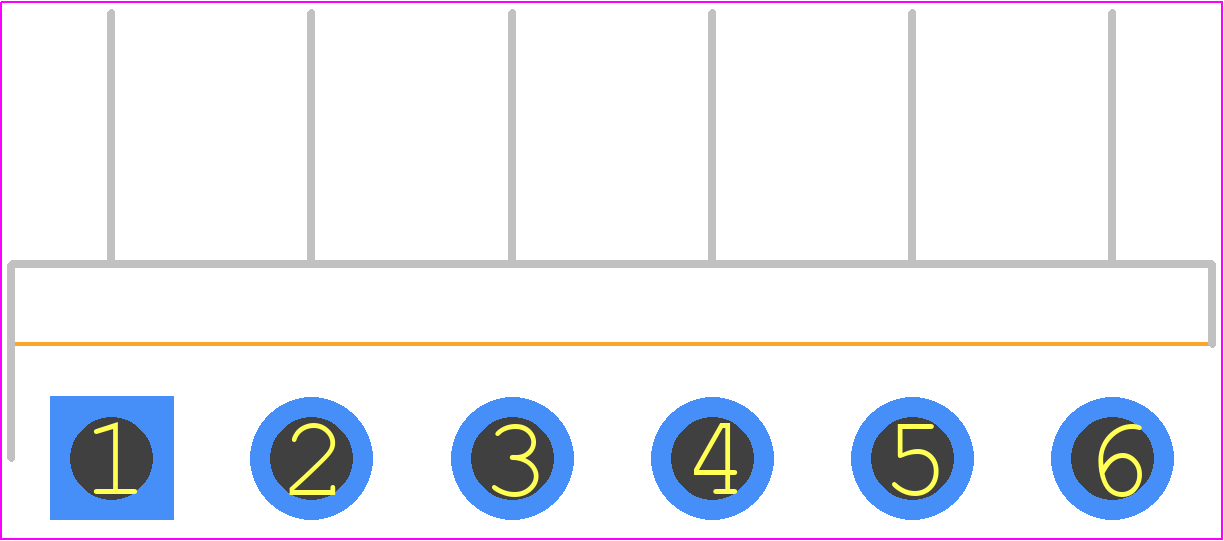

- Footprint Name Header, Unshrouded - Right Angle PTH Pin - 30.476
- Released Date Jan 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
30.476 Details
-
Manufacturer Part Number:
30.476
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Altech Corporation
-
Terminal and Terminal Block Type:
STRIP TERMINAL BLOCK
30.476 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
-
The 30.476 is not designed for use in hazardous locations. It does not meet the requirements for explosion-proof or intrinsically safe devices. Consult Altech Corporation for specialized products that meet hazardous location requirements.
-
The maximum wire size that can be used with the 30.476 is 2.5 mm² (14 AWG). Using larger wire sizes may compromise the product's performance and reliability.
-
The 30.476 is designed for indoor use only. It does not meet the environmental requirements for outdoor use, such as IP67 or higher. Consult Altech Corporation for outdoor-rated products.
-
The 30.476 is designed for general-purpose use and may not be suitable for high-vibration environments. Consult Altech Corporation for products specifically designed for high-vibration applications.
Trust Checks
Community Provided
System Verified
Community Approved
30.476 Overview
Use the download button to access the 30.476 schematic symbol and PCB footprint.
