- Part Number 3005W5SXX56N40X
- Manufacturer CONEC
- Pin Count 7
- Part Category Connector
- Package Category Other

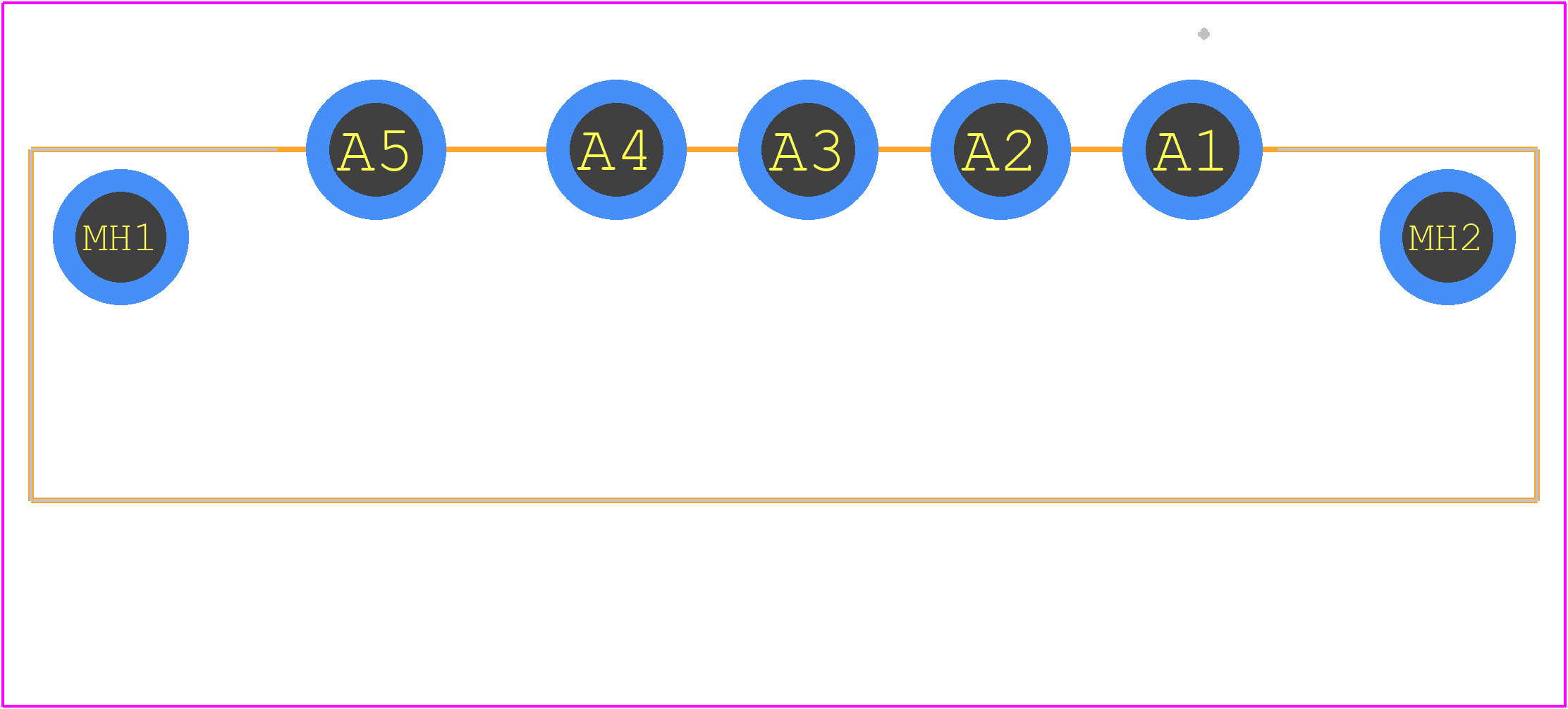

- Footprint Name Other - 3005W5SXX56N40X-4
- Released Date Apr 15, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3005W5SXX56N40X Details
-
Manufacturer Part Number:
3005W5SXX56N40X
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Conec Corporation
-
Body Breadth:
0.509 inch
-
Body Depth:
0.476 inch
-
Body Length:
2.103 inch
-
Contact Arrangement:
S0P5
3005W5SXX56N40X Frequently Asked Questions (FAQs)
-
The operating temperature range of the 3005W5SXX56N40X connector is -40°C to 125°C.
-
Yes, the 3005W5SXX56N40X connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
-
The 3005W5SXX56N40X connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
-
The 3005W5SXX56N40X connector is designed to be compatible with other connectors that meet the MIL-DTL-38999 standard, but compatibility with specific connectors from other manufacturers should be verified before use.
-
The typical lead time for delivery of the 3005W5SXX56N40X connector can vary depending on the quantity and availability, but it is usually around 6-12 weeks.
Trust Checks
Expert Contribution
System Verified
Community Approved
3005W5SXX56N40X Overview
Use the download button to access the 3005W5SXX56N40X schematic symbol, PCB footprint, and 3D model.
