3007W2PCR49E40X - CONEC

Description: Combination D-SUB Connector

Download 3007W2PCR49E40X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3007W2PCR49E40X - CONEC - PCB symbol
click to zoom
PCB Footprints

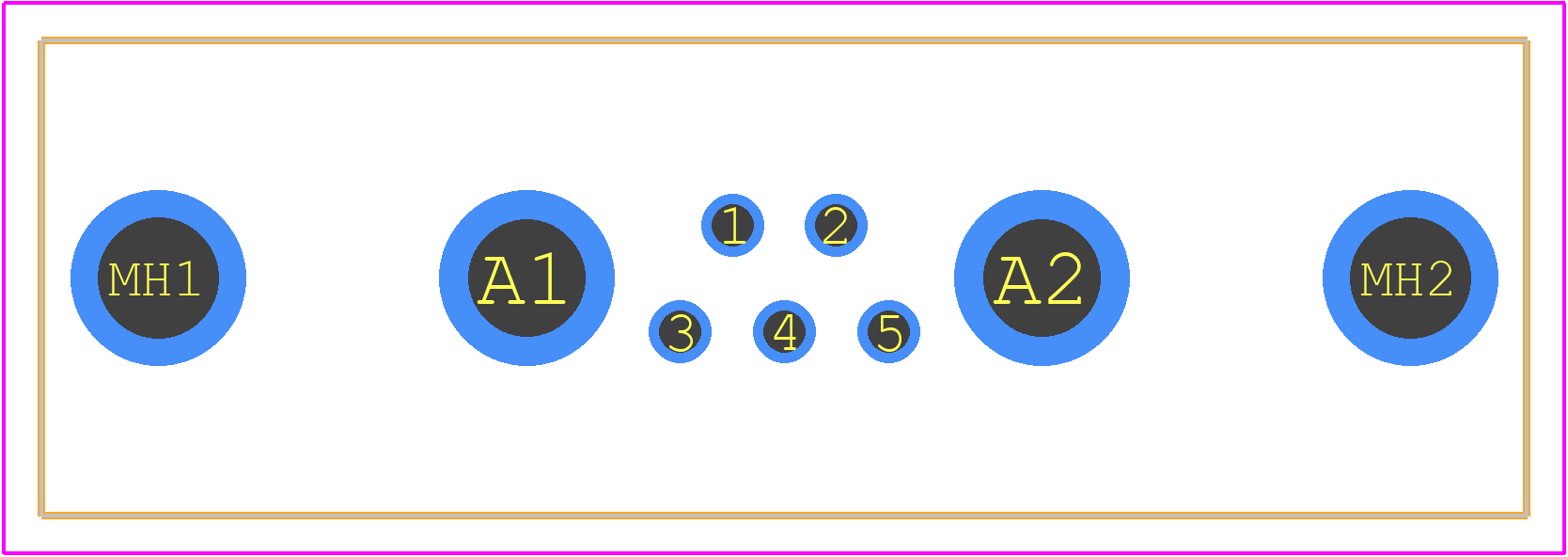

3007W2PCR49E40X - CONEC PCB footprint - Other - Other - 3007W2PCR49E40X-1
click to zoom
3D Models
3007W2PCR49E40X - CONEC - 3D model - Other - 3007W2PCR49E40X-1
click to zoom

3007W2PCR49E40X Details

  • Manufacturer Part Number:

    3007W2PCR49E40X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • YTEOL:

    8

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    7

  • UL Flammability Code:

    94V-0
