3007W2SCT56N40X footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

PCB Footprints

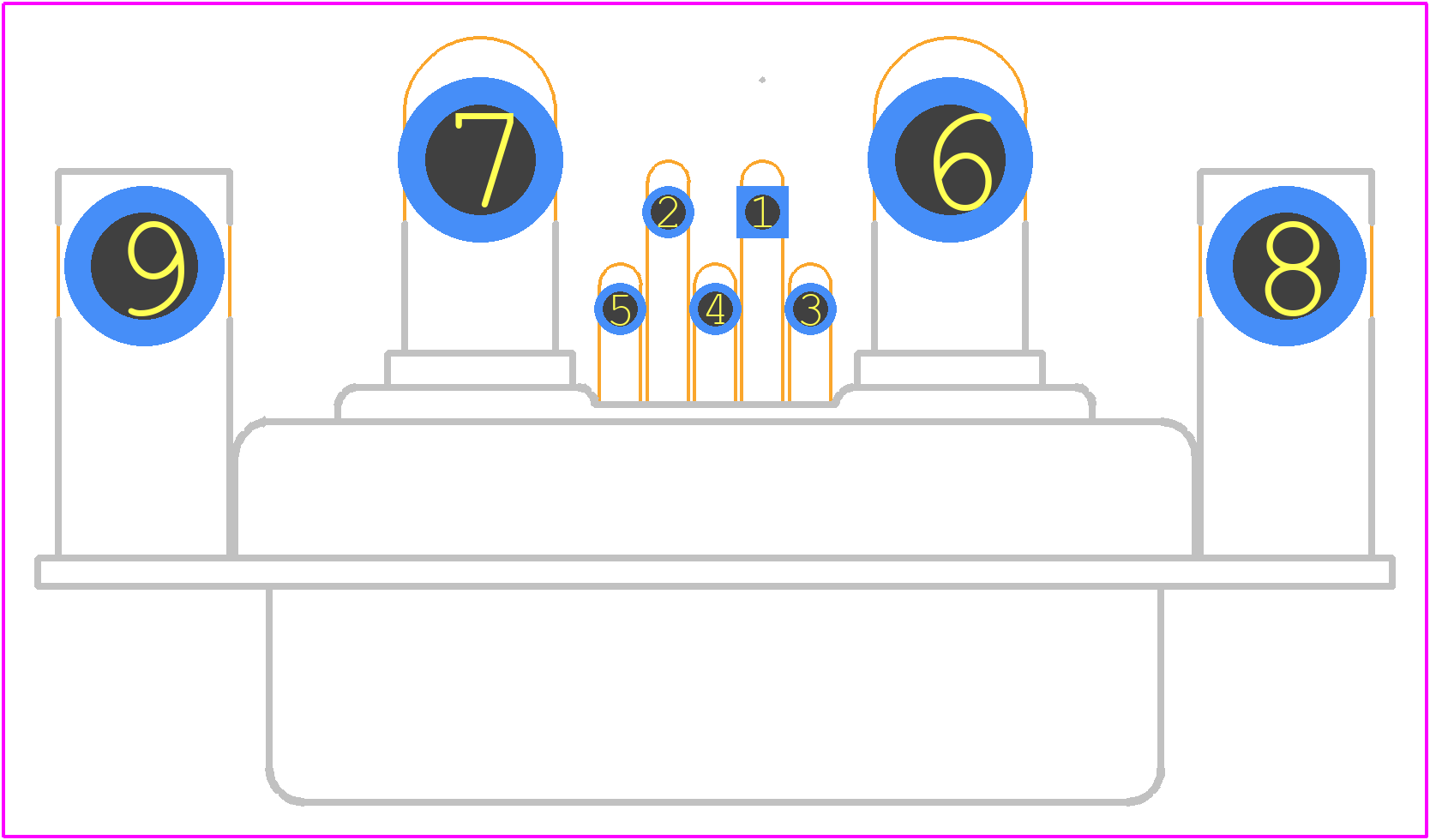

3007W2SCT56N40X - CONEC PCB footprint - Other - Other - 3007W2SCT56N40X-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3007W2SCT56N40X
Part Number 3007W2SCT56N40X
Manufacturer CONEC
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - 3007W2SCT56N40X-1
Released Date Jul 13, 2018
Last Modified Date Jun 18, 2025 10:41 AM UTC
Pinout / Pin List Click Here (Member Only)

3007W2SCT56N40X Details

Manufacturer Part Number:
3007W2SCT56N40X
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
YTEOL:
8
Body Breadth:
0.509 inch
Body Length:
1.556 inch
Body/Shell Style:
SOCKET
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Arrangement:
S5P2
Contact Finish Mating:
AU ON NI
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
GREEN
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
YES
Mounting Option 1:
HOLE .112-.124
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number Of Connectors:
ONE
Option:
GENERAL PURPOSE
Plating Thickness:
30u inch
Reference Standard:
UL
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
2/A
Termination Type:
SOLDER
Total Number of Contacts:
7
UL Flammability Code:
94V-0

3007W2SCT56N40X Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm, but it's recommended to consult the Conec Corporation application notes for specific guidance.
Yes, the 3007W2SCT56N40X is designed to withstand vibrations up to 10g, but it's recommended to consult with Conec Corporation or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The operating temperature range for the 3007W2SCT56N40X is -40°C to 125°C, but it's recommended to consult the datasheet or Conec Corporation for specific temperature derating information.
The 3007W2SCT56N40X has a IP67 rating, making it suitable for use in harsh environments, but it's recommended to consult with Conec Corporation or a qualified engineer to ensure the connector meets the specific environmental requirements of your application.
The recommended mating cycle for the 3007W2SCT56N40X is 500 cycles, but it's recommended to consult the datasheet or Conec Corporation for specific guidance on mating cycles and connector lifespan.

Trust Checks

Community Provided

System Verified

Community Approved

3007W2SCT56N40X Overview

Use the download button to access the 3007W2SCT56N40X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 3007W, or try a keyword search, such as D Type Connectors
