300DP1R1BLKM7QE - E-Switch

Description: ROCKER, 5A, 120VAC/28VDC DPDT, On-On Through Hole, Right Angle, Vertical

Download 300DP1R1BLKM7QE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 300DP1R1BLKM7QE model

Email notifications will be applied after download.

Send part feedback

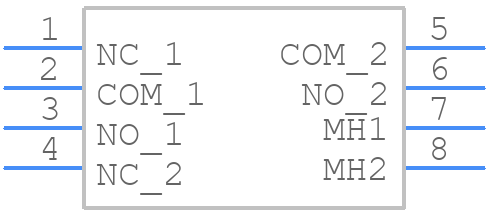

Symbol

300DP1R1BLKM7QE - E-Switch - PCB symbol

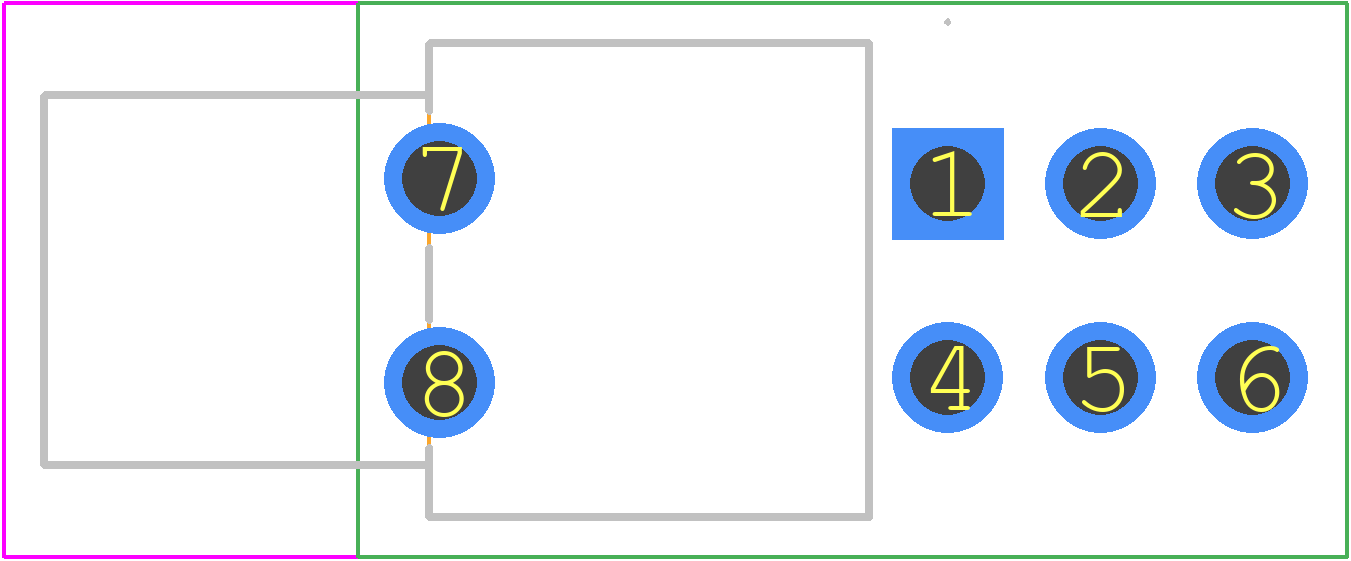

PCB Footprints

300DP1R1BLKM7QE - E-Switch PCB footprint - Other - Other - 300DP1R1BLKM7QE-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for 300DP1R1BLKM7QE
Part Number 300DP1R1BLKM7QE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 300DP1R1BLKM7QE-4
Released Date Jan 6, 2025
Last Modified Date Apr 18, 2025 12:06 PM UTC
Pinout / Pin List Click Here (Member Only)

300DP1R1BLKM7QE Details

Manufacturer Part Number:
300DP1R1BLKM7QE
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

300DP1R1BLKM7QE Overview

Use the download button to access the 300DP1R1BLKM7QE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 300DP, or try a keyword search, such as Rocker Switches
