The recommended torque for the 300DP3J1BLKM6QE switch's actuator is 1.5 N·cm to 3.5 N·cm (13.4 in-lbs to 26.6 in-lbs). Exceeding this torque may damage the switch or affect its performance.
Yes, the 300DP3J1BLKM6QE switch is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz, making it suitable for use in high-vibration environments.
The 300DP3J1BLKM6QE switch has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain its environmental rating.
The 300DP3J1BLKM6QE switch has a rated lifespan of 50,000 cycles, with a minimum of 10,000 cycles guaranteed. However, the actual lifespan may vary depending on factors such as usage, environment, and maintenance.
Yes, it's recommended to follow E-Switch's guidelines for PCB layout and design, including keeping the switch's pins away from high-voltage or high-current traces, and ensuring proper clearance and creepage distances to prevent electrical noise or interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
300DP3J1BLKM6QE Overview

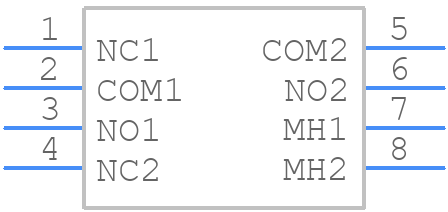

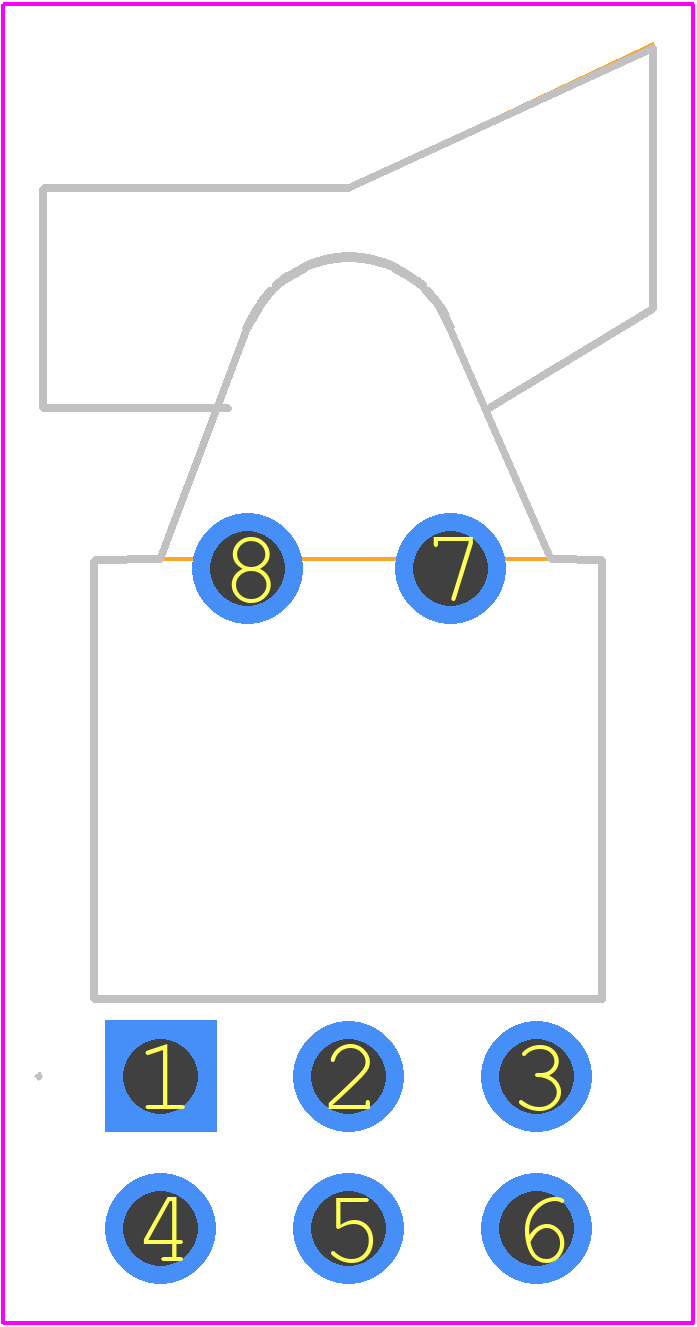

Use the download button to access the 300DP3J1BLKM6QE schematic symbol, PCB footprint, and 3D model.
