300SP1J1BLKM7QE footprint, schematic symbol and 3D model by E-Switch

Symbol

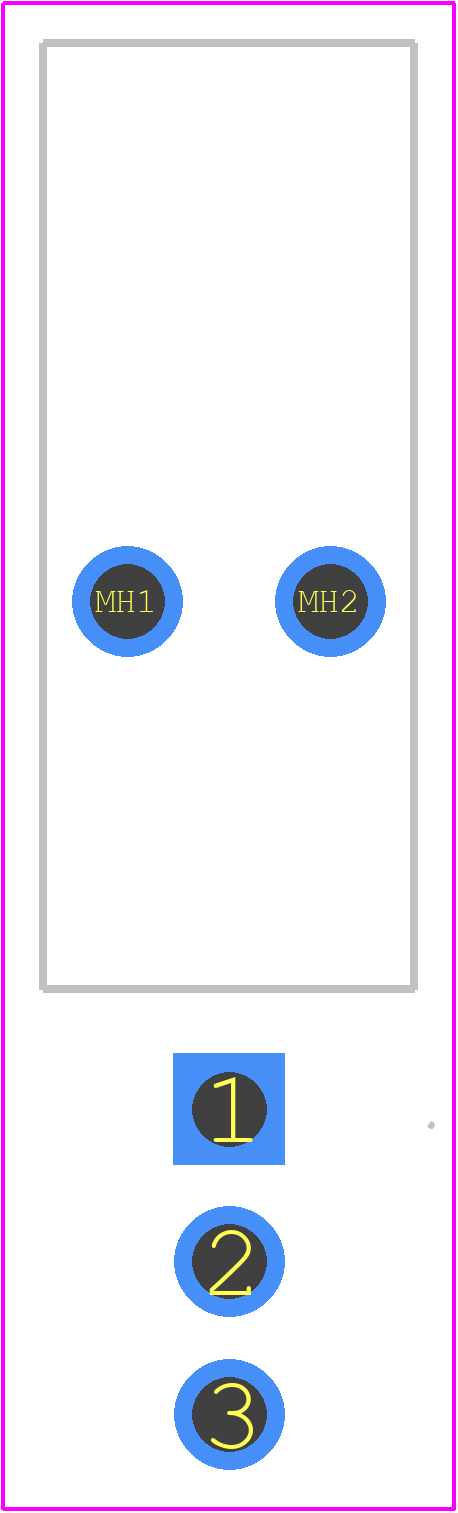

PCB Footprints

3D Models

300SP1J1BLKM7QE Details

The recommended operating temperature range for the 300SP1J1BLKM7QE is -20°C to 85°C.
Yes, the 300SP1J1BLKM7QE is designed for high-reliability applications, with a lifespan of up to 10,000,000 cycles.
The maximum voltage rating for the 300SP1J1BLKM7QE is 12VDC.
Yes, the 300SP1J1BLKM7QE meets the requirements for automotive applications, including resistance to vibration, shock, and extreme temperatures.
The typical actuation force required for the 300SP1J1BLKM7QE is 1.5 N (newtons).

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 300SP1J1BLKM7QE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 300SP, or try a keyword search, such as Rocker Switches
