3011-20G00SB1A - OUPIN

Description: 20 position Latch Header Vertical Long Ejectors

Download 3011-20G00SB1A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3011-20G00SB1A - OUPIN - PCB symbol
click to zoom
PCB Footprints

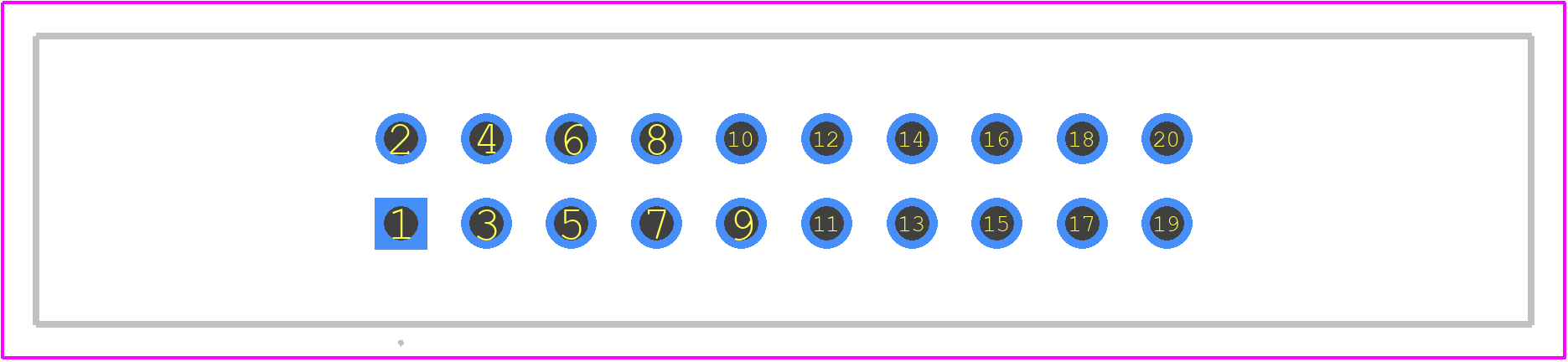

3011-20G00SB1A - OUPIN PCB footprint - Other - Other - 3011-20G00SB1A-2
click to zoom
3D Models
3011-20G00SB1A - OUPIN - 3D model - Other - 3011-20G00SB1A-2
click to zoom

3011-20G00SB1A Details

  • Manufacturer Part Number:

    3011-20G00SB1A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Oupiin

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

3011-20G00SB1A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 3011-20G00SB1A is -40°C to 85°C, as specified by Oupiin.
  • To ensure proper thermal management, Oupiin recommends using a heat sink with a thermal resistance of 10°C/W or less, and applying a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
  • The maximum power dissipation for the 3011-20G00SB1A is 1.5 W, as specified in the datasheet. Exceeding this limit may cause damage to the device.
  • While the 3011-20G00SB1A is designed to be robust, Oupiin recommends taking additional precautions when using the device in high-vibration environments. This may include using a vibration-dampening material or a more secure mounting method.
  • Oupiin recommends following a systematic troubleshooting approach, starting with checking the power supply, signal connections, and device configuration. If issues persist, contact Oupiin's technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3011-20G00SB1A Overview

Use the download button to access the 3011-20G00SB1A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3011-, or try a keyword search, such as Headers and Edge Type Connectors
