3017W5SCT56N40X footprint, schematic symbol and 3D model by CONEC

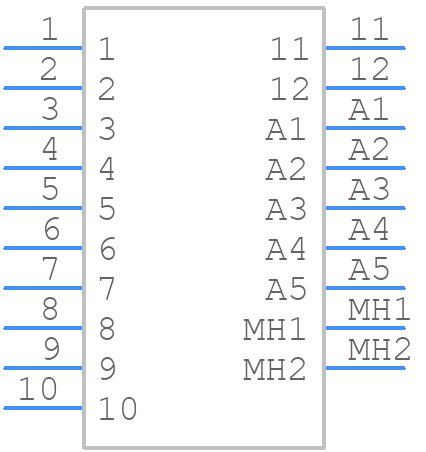

Symbol

click to zoom

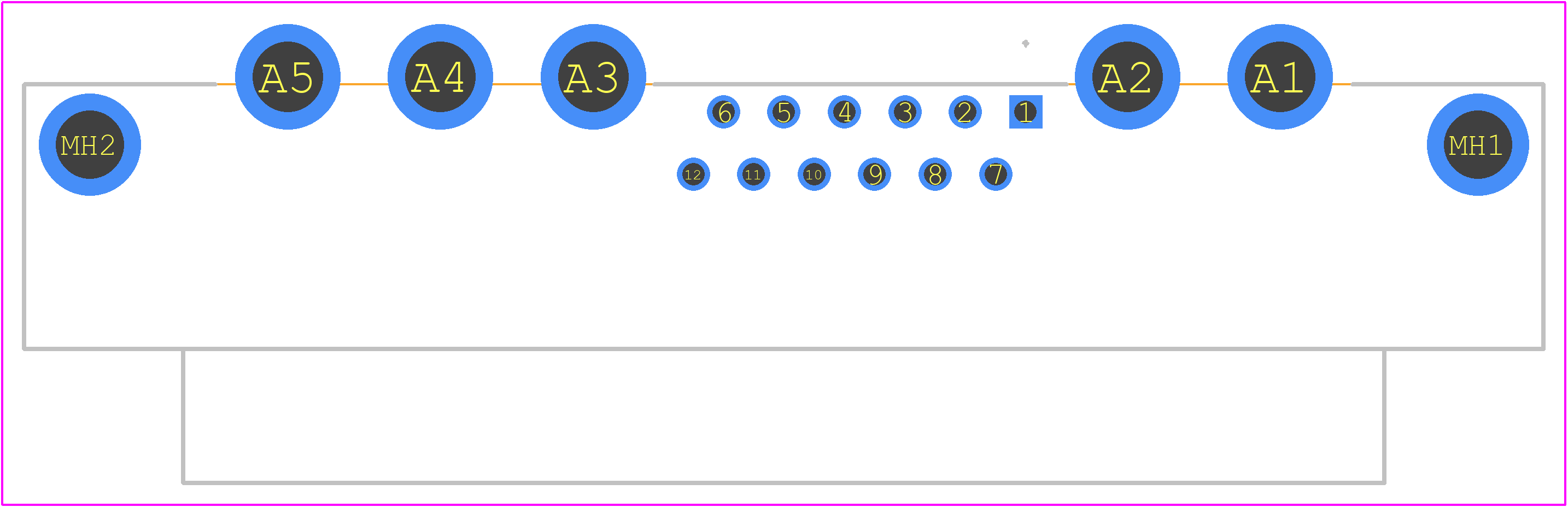

PCB Footprints

3017W5SCT56N40X - CONEC PCB footprint - Other - Other - 3017W5SCT56N40X-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3017W5SCT56N40X
Part Number 3017W5SCT56N40X
Manufacturer CONEC
Pin Count 19
Part Category Connector
Package Category Other
Footprint Name Other - 3017W5SCT56N40X-1
Released Date Aug 10, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

3017W5SCT56N40X Details

Manufacturer Part Number:
3017W5SCT56N40X
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
YTEOL:
8.5
Body Breadth:
0.509 inch
Body Length:
2.744 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Style:
HYBRID
Durability:
500 Cycles
Filter Feature:
NO
Mixed Contacts:
YES
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Shell Size:
4/C
Termination Type:
SOLDER
Total Number of Contacts:
17

3017W5SCT56N40X Frequently Asked Questions (FAQs)

The operating temperature range of the 3017W5SCT56N40X connector is -40°C to 125°C.
Yes, the 3017W5SCT56N40X connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
The 3017W5SCT56N40X connector has a mating cycle life of 500 cycles, ensuring reliable connections even in demanding applications.
The 3017W5SCT56N40X connector is designed to be compatible with other connectors that meet the MIL-DTL-38999 standard, ensuring interoperability across different manufacturers.
The typical lead time for delivery of the 3017W5SCT56N40X connector is 8-12 weeks, depending on the quantity and availability.

Trust Checks

Community Provided

System Verified

Community Approved

3017W5SCT56N40X Overview

Use the download button to access the 3017W5SCT56N40X schematic symbol and PCB footprint.
