3020-40-0300-00 footprint, schematic symbol and 3D model by CNC Tech

Symbol

click to zoom

PCB Footprints

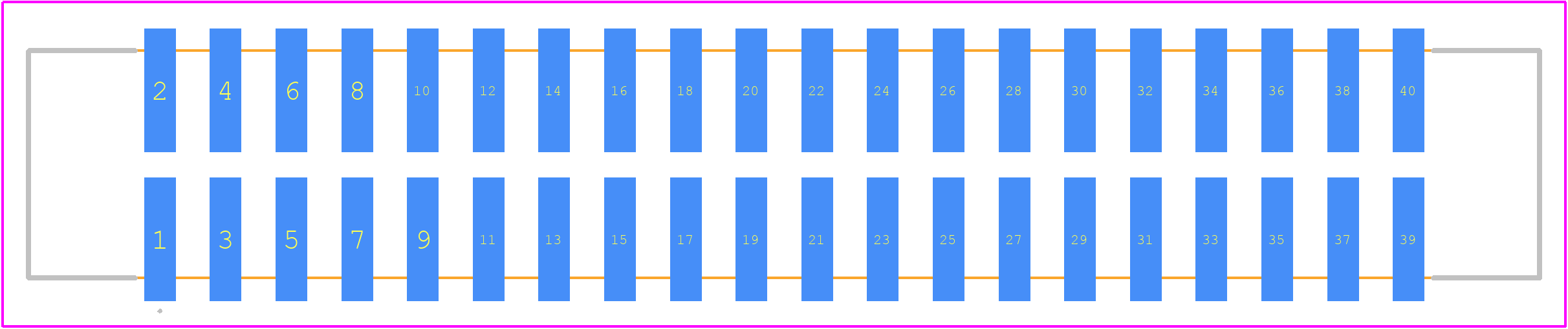

3020-40-0300-00 - CNC Tech PCB footprint - Other - Other - 3020-40-0300-00-1

click to zoom

3D Models

3020-40-0300-00 - CNC Tech - 3D model - Other - 3020-40-0300-00-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3020-40-0300-00
Part Number 3020-40-0300-00
Manufacturer CNC Tech
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - 3020-40-0300-00-1
Released Date Oct 9, 2023
Last Modified Date Oct 10, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

3020-40-0300-00 Details

Manufacturer Part Number:
3020-40-0300-00
Pbfree Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
CnC Tech LLC
Body Breadth:
0.35 inch
Body Depth:
0.419 inch
Body Length:
2.3 inch
Connector Type:
BOARD CONNECTOR
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
600VAC V
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Material:
POLYAMIDE6T/POLYESTER
Mating Contact Pitch:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
7.4 mm
Plating Thickness:
FLASH inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
3 A
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
40
UL Flammability Code:
94V-0

3020-40-0300-00 Frequently Asked Questions (FAQs)

The recommended storage temperature range is typically between -20°C to 70°C (-4°F to 158°F) to ensure optimal performance and longevity.
Yes, the 3020-40-0300-00 is designed to withstand moderate vibration levels. However, it's recommended to consult with CnC Tech LLC or a qualified engineer to determine the suitability of the product for specific high-vibration applications.
The typical lead time for delivery of the 3020-40-0300-00 is 4-6 weeks, but this may vary depending on the quantity, production schedule, and shipping location. It's best to consult with CnC Tech LLC or an authorized distributor for the most up-to-date information.
The 3020-40-0300-00 is designed to be compatible with [list specific industry-standard protocols or interfaces]. However, it's recommended to consult the datasheet or contact CnC Tech LLC to confirm compatibility with specific protocols or interfaces.
The warranty period for the 3020-40-0300-00 is typically 1-2 years, depending on the specific agreement with CnC Tech LLC or an authorized distributor. It's best to consult with the manufacturer or distributor for the most up-to-date warranty information.

Trust Checks

Community Provided

System Verified

Community Approved

3020-40-0300-00 Overview

Use the download button to access the 3020-40-0300-00 schematic symbol, PCB footprint, and 3D model.
