3036W4PAT99N20X - CONEC

Description: D-Sub Mixed Contact Connectors 36W4 MALE R/A M.BRKT 4-40 INSERT

Download 3036W4PAT99N20X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

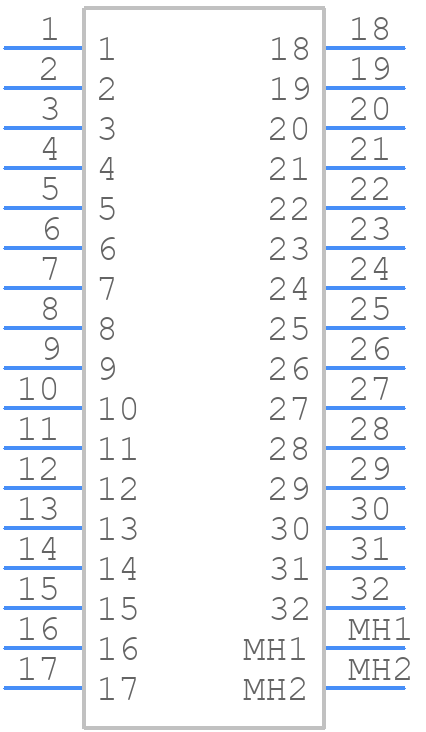

3036W4PAT99N20X - CONEC - PCB symbol
click to zoom
PCB Footprints

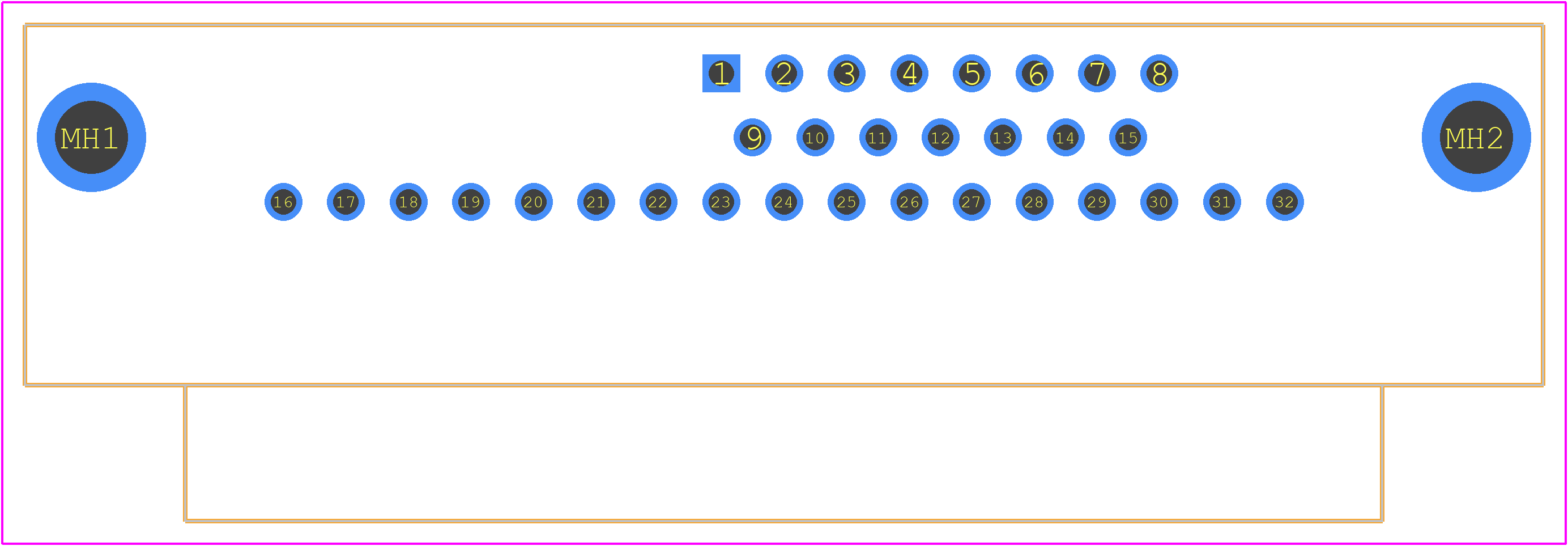

3036W4PAT99N20X - CONEC PCB footprint - Other - Other - 3036W4PAT99N20X-2
click to zoom
3D Models
3036W4PAT99N20X - CONEC - 3D model - Other - 3036W4PAT99N20X-2
click to zoom

3036W4PAT99N20X Details

  • Manufacturer Part Number:

    3036W4PAT99N20X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Termination:

    Gold (Au) over Nickel (Ni)

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3036W4PAT99N20X Overview

Use the download button to access the 3036W4PAT99N20X schematic symbol, PCB footprint, and 3D model.
