- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 31-5329
- Part Number 31-5329
- Manufacturer Amphenol
- Pin Count 4
- Part Category Connector
- Package Category Other
- Footprint Name Other - 31-5329
- Released Date May 22, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
31-5329 Details
-
Manufacturer Part Number:
31-5329
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Factory Lead Time:
10 Weeks
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
7.55
-
Additional Feature:
INSERTION LOSS MAX AT 3 GHZ
-
Body Depth:
0.644 inch
31-5329 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
-
Yes, the 31-5329 connector is designed to withstand high-vibration environments. Amphenol Corporation's connectors are tested to meet the requirements of various industries, including aerospace, defense, and industrial applications, which often involve high-vibration conditions.
-
The 31-5329 connector is designed to be environmentally sealed, making it suitable for outdoor use. However, it's essential to ensure that the connector is properly mated and sealed to maintain its environmental rating. Consult the datasheet and application notes for specific guidance on outdoor use.
-
The maximum operating temperature range for the 31-5329 connector is -55°C to 125°C (-65°F to 257°F). However, it's essential to consult the specific application requirements and ensure that the connector is used within its recommended operating temperature range to maintain reliability and performance.
-
Yes, the 31-5329 connector is designed to operate in high-humidity environments. Amphenol Corporation's connectors are tested to meet the requirements of various industries, including aerospace, defense, and industrial applications, which often involve high-humidity conditions.
Trust Checks
Expert Contribution
System Verified
Community Approved
31-5329 Overview

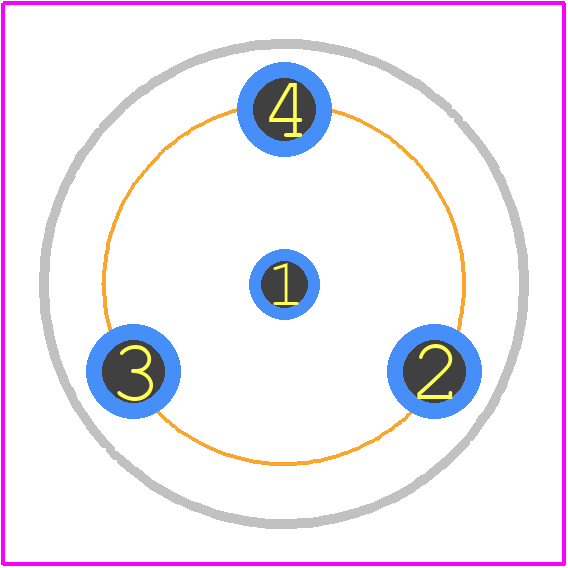

Use the download button to access the 31-5329 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31-53,
or try a keyword search, such as RF BNC Connectors
