31182108 - Metz Connect

Description: 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole

Download 31182108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
31182108 - Metz Connect - PCB symbol
click to zoom
PCB Footprints

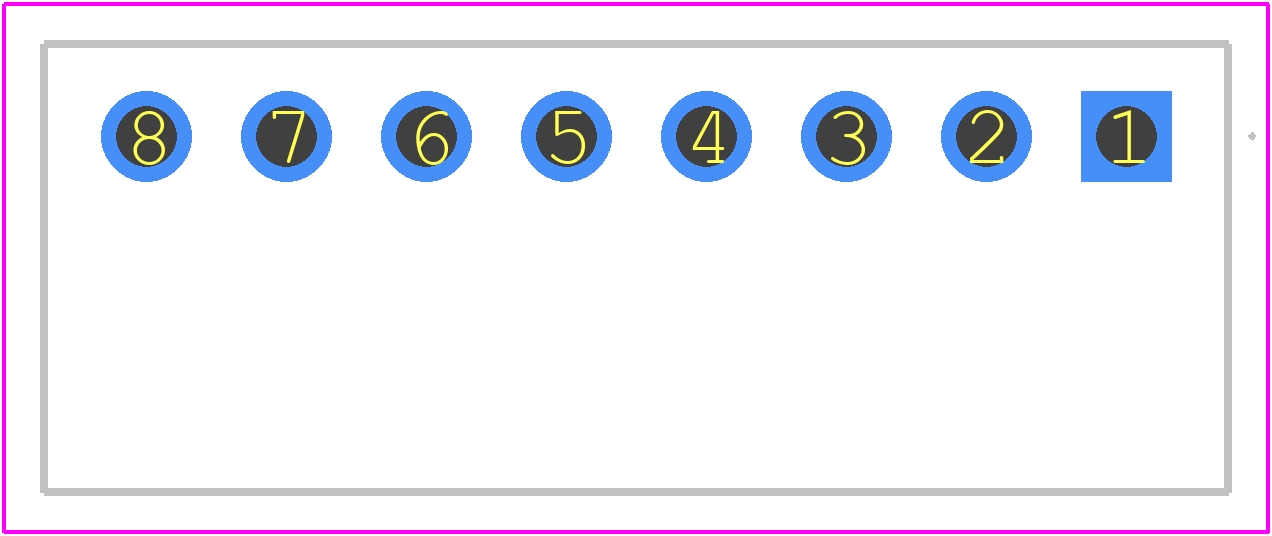

31182108 - Metz Connect PCB footprint - Other - Other - 31182108-2
click to zoom
3D Models
31182108 - Metz Connect - 3D model - Other - 31182108-2
click to zoom

31182108 Details

  • Manufacturer Part Number:

    31182108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    METZ CONNECT USA

  • YTEOL:

    6.75

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

31182108 Overview

Use the download button to access the 31182108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 31182, or try a keyword search, such as Terminals and Terminal Blocks
