32-6554-10 - ARIES

Description: Aries Electronics 2.54mm Pitch 32 Way Through Hole Universal ZIF Test Socket

Download 32-6554-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

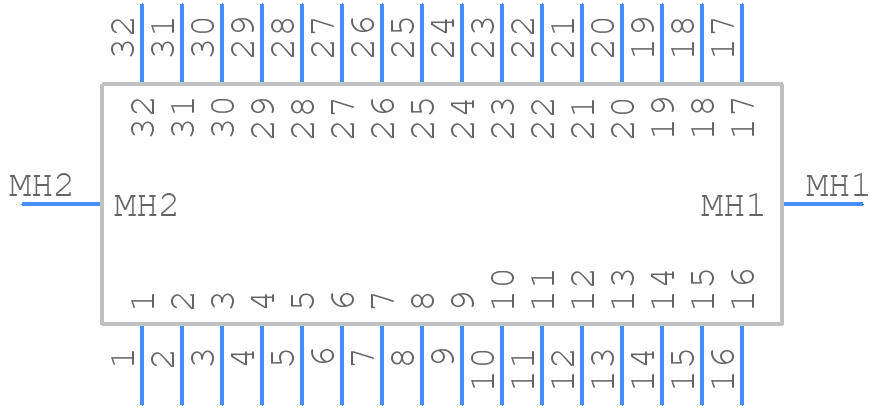

32-6554-10 - ARIES - PCB symbol
click to zoom
PCB Footprints

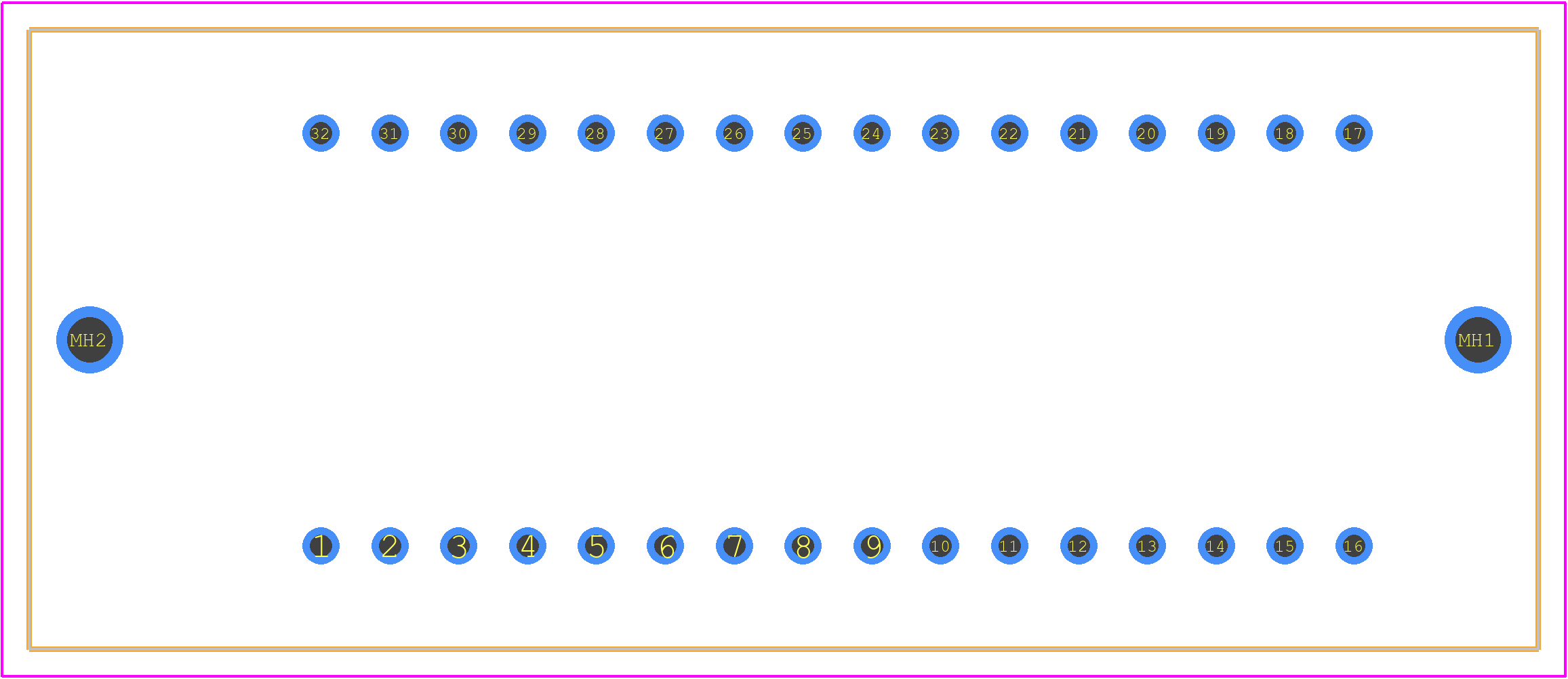

32-6554-10 - ARIES PCB footprint - Other - Other - 32-6554-10-2
click to zoom
3D Models
32-6554-10 - ARIES - 3D model - Other - 32-6554-10-2
click to zoom

32-6554-10 Details

  • Manufacturer Part Number:

    32-6554-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.9 inch

  • Body Depth:

    0.47 inch

  • Body Length:

    2.19 inch

  • Contact Finish Mating:

    MATTE TIN (200) OVER NICKEL

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP32

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    105 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

32-6554-10 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
  • Yes, the 32-6554-10 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • Yes, the 32-6554-10 is designed for automated assembly processes, including pick-and-place and wire-termination machines. However, it's recommended to consult with the manufacturer for specific guidance on assembly and processing.
  • The operating temperature range for the 32-6554-10 is -40°C to +125°C (-40°F to +257°F), making it suitable for a wide range of applications.
  • The 32-6554-10 has a sealed design that provides protection against moisture and humidity. However, it's recommended to follow the manufacturer's guidelines for environmental sealing and protection to ensure reliable performance in harsh environments.
