Part Image

3224W-1-205G - Bourns

Description: Trimmer Resistors - SMD 4mm 2Mohms 10% Square Cermet Sealed

Download 3224W-1-205G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

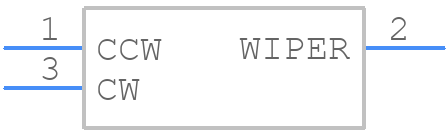

Symbol
3224W-1-205G - Bourns - PCB symbol
click to zoom
PCB Footprints
3224W-1-205G - Bourns PCB footprint - Other - Other - 3224W-1-205G-1
click to zoom
3D Models
3224W-1-205G - Bourns - 3D model - Other - 3224W-1-205G-1
click to zoom

3224W-1-205G Details

  • Manufacturer Part Number:

    3224W-1-205G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.50

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SCREW

  • Construction:

    Sealed

  • Ganging Number:

    1

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    5.1 mm

  • Package Length:

    4.8 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.5 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    85 °C

  • Resistance:

    2000000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    TRIMMER

  • Rotational Angle:

    4320 deg

  • Size Code:

    1914

  • Surface Mount:

    YES

  • Technology:

    CERMET

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    J BEND

  • Tolerance:

    10%

  • Working Voltage:

    300 V

3224W-1-205G Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application note AN204, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and to minimize thermal resistance.
  • To select the correct resistor value, consider the maximum current and voltage ratings of the 3224W-1-205G, as well as the desired power rating and tolerance. You can use online calculators or consult with a Bourns representative to determine the optimal resistor value for your specific application.
  • The 3224W-1-205G has an operating temperature range of -40°C to +150°C. However, the power rating is derated above 70°C, and the device should not be operated above 150°C for extended periods to ensure reliability and longevity.
  • The 3224W-1-205G is a wirewound resistor, which may not be suitable for high-frequency applications due to its inductive nature. For high-frequency applications, consider using a thin-film or metal-film resistor instead.
  • The 3224W-1-205G has an MSL rating of 1, which means it can withstand normal humidity levels and does not require special handling or storage precautions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3224W-1-205G Overview

Use the download button to access the 3224W-1-205G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3224W, or try a keyword search, such as Trimmer Potentiometers
