- Part Number 34707-2012
- Manufacturer Molex
- Pin Count 34
- Part Category Connector
- Package Category Other
- Footprint Name Other - 34707-2012-9
- Released Date Jun 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
34707-2012 Details
-
Manufacturer Part Number:
34707-2012
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
18 Weeks
-
Manufacturer:
Molex
-
YTEOL:
6.85
-
Additional Feature:
POLARIZED
34707-2012 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lb·in to 1.06 lb·in).
-
Yes, the 34707-2012 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and other applications where vibration is a concern.
-
While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes ranging from AWG 18 to AWG 26, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
-
To ensure proper wire seating and prevent wire damage, use the recommended wire stripping length, and gently insert the wire into the terminal until it clicks into place. Avoid over-tightening the screw terminals, as this can cause wire damage or terminal deformation.
-
The 34707-2012 connector is rated for operating temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's essential to consider the temperature rating of the wire and other components in the system to ensure overall reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
34707-2012 Overview

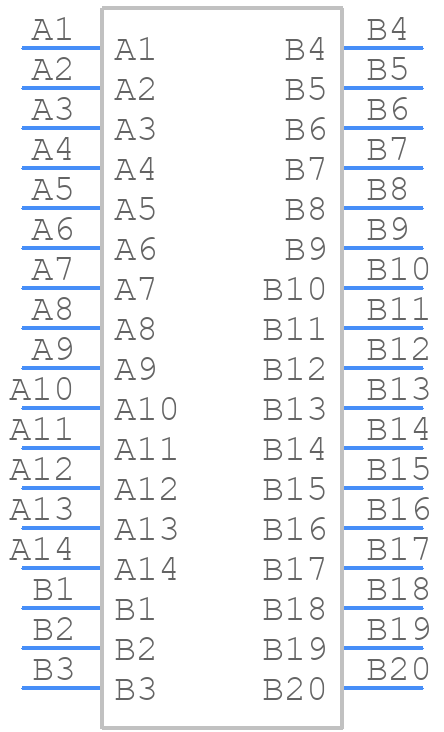

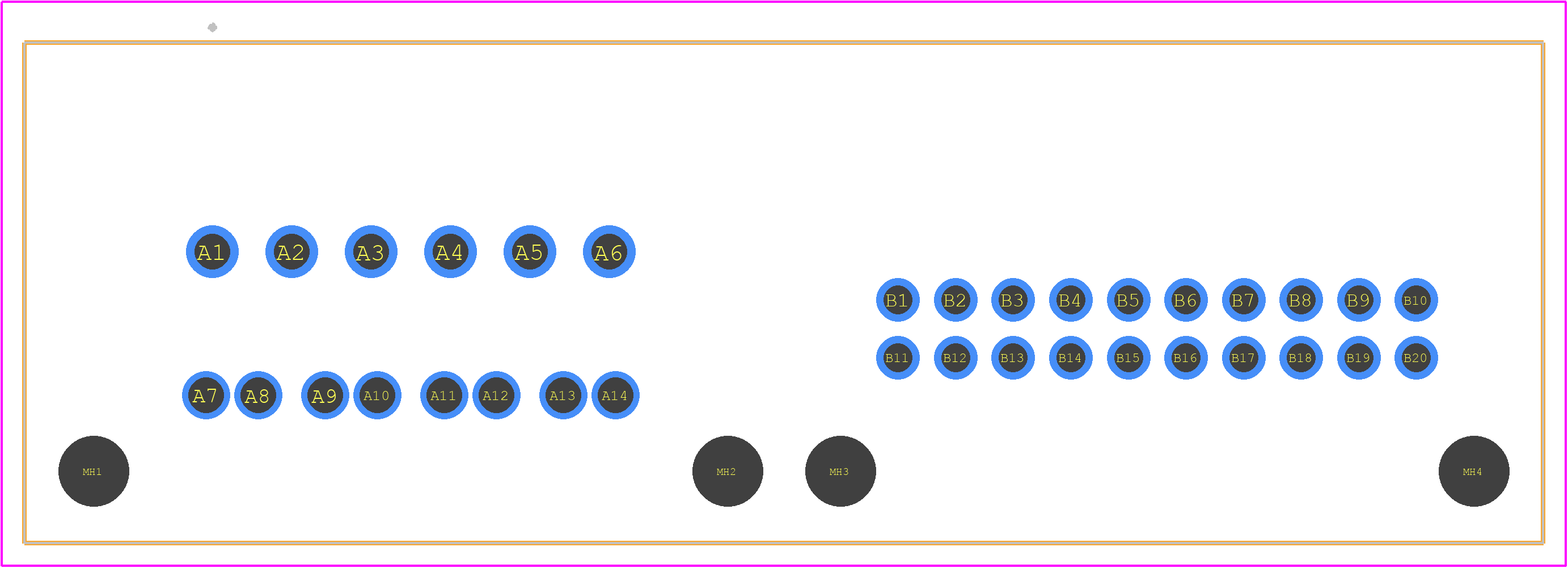

Use the download button to access the 34707-2012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 34707,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
